Model: F350-S

Item #: 501000

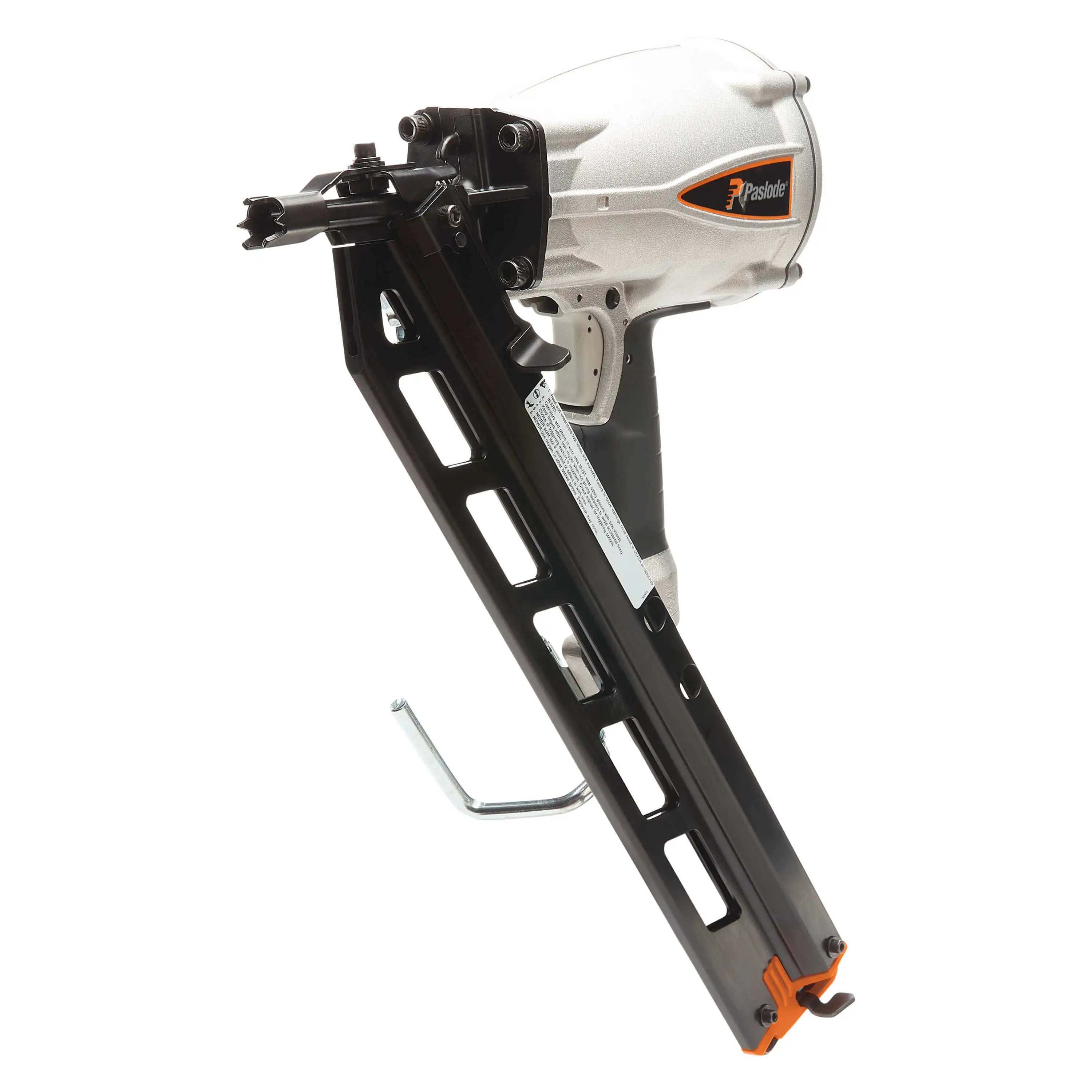

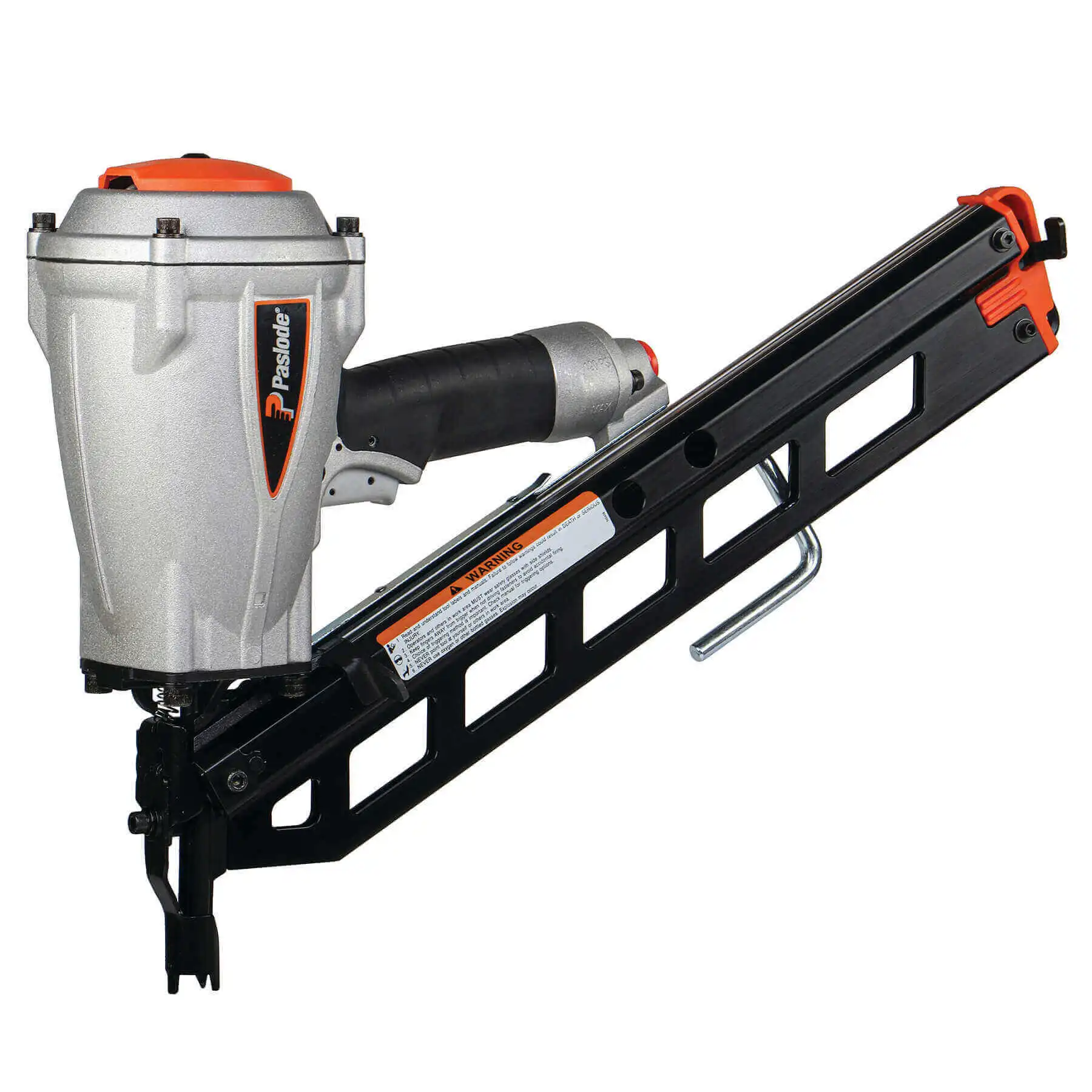

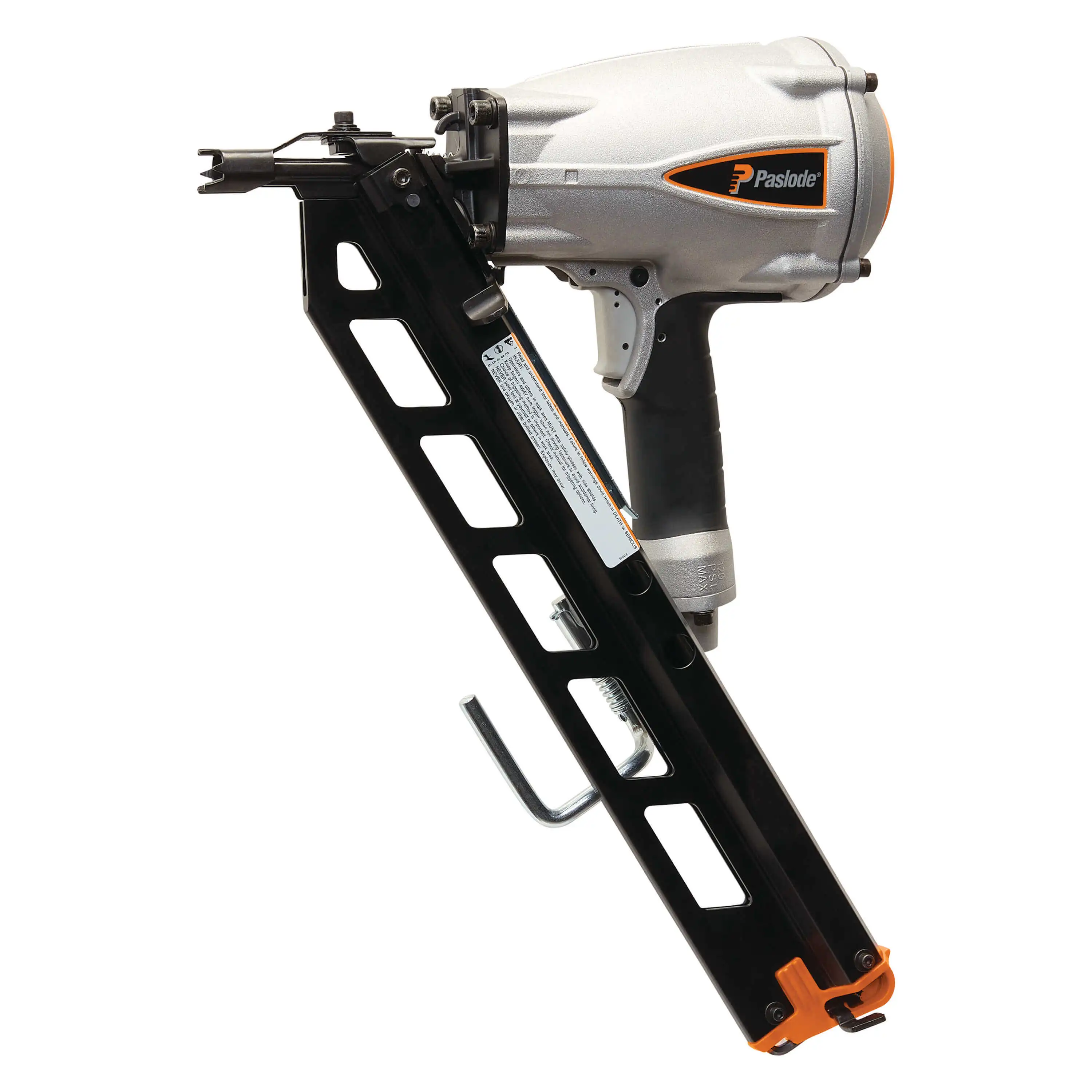

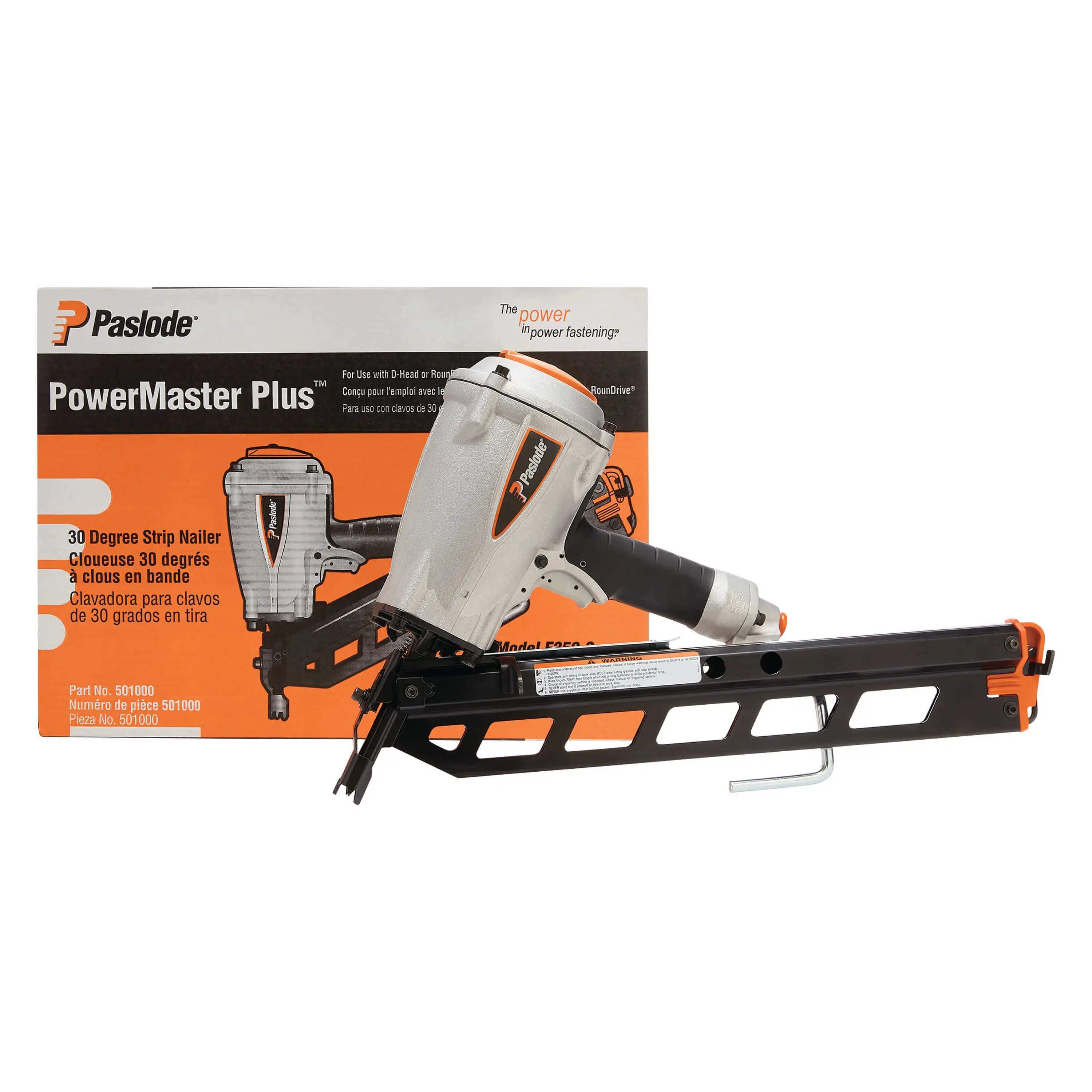

Pneumatic PowerMaster Plus™ 30 Degree Framing Nailer

Our Pneumatic PowerMaster Plus 30 Degree Framing Nailer is built to tackle heavy–duty jobs. Its reliable performance saves time with less maintenance, and its durable construction means it's made to last.

Weighs only 8.4lbs
Fire up to 6 nails per second
Reduce jams and misfires by using genuine Paslode nails

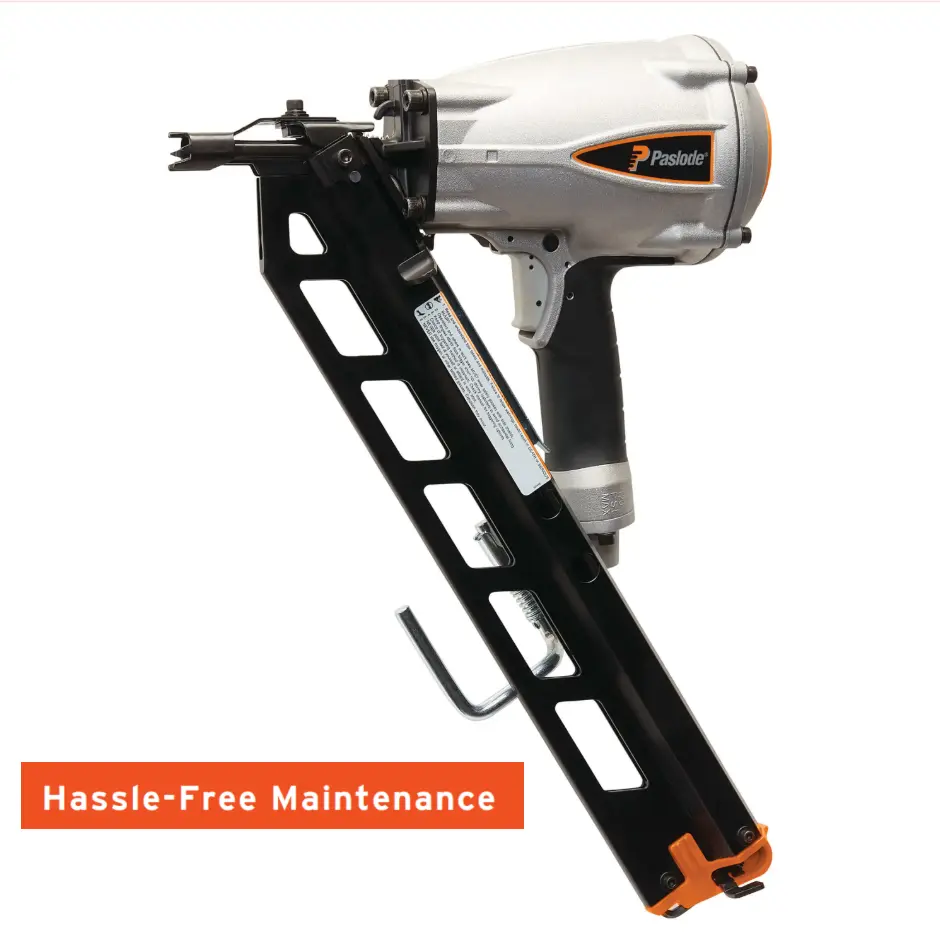

Hassle-Free Maintenance: Regular lubrication not required. Full cleaning and lubrication recommended every 500k shots

Paslode pneumatic nailers give you reliable framing performance that saves time with less maintenance.

Where to Buy

501000

Pneumatic PowerMaster Plus™ 30 Degree Framing Nailer

Where to Buy

Features & Applications

DURABLE

Built to last and requires less maintenance.

POWERFUL

Proven performance on the toughest jobsites.

RELIABLE

Consistently drives nails flush.

Features

Operating Features

Adjustable Depth of Drive – quickly get the right nail depth

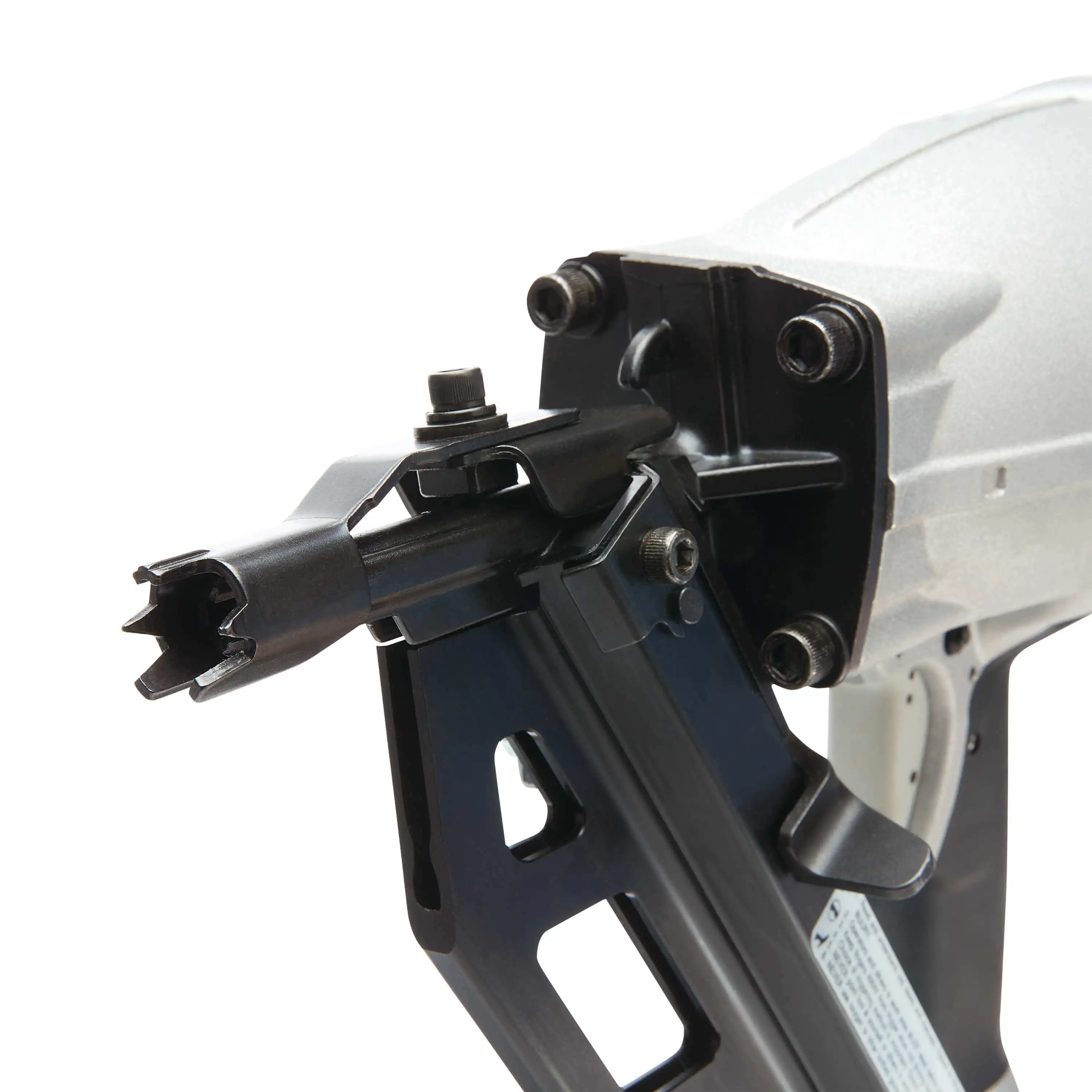

Aggressive Tooth Tip – ideal for toe nailing
Adjustable Exhaust Cap – deflects air away from user

Design Features

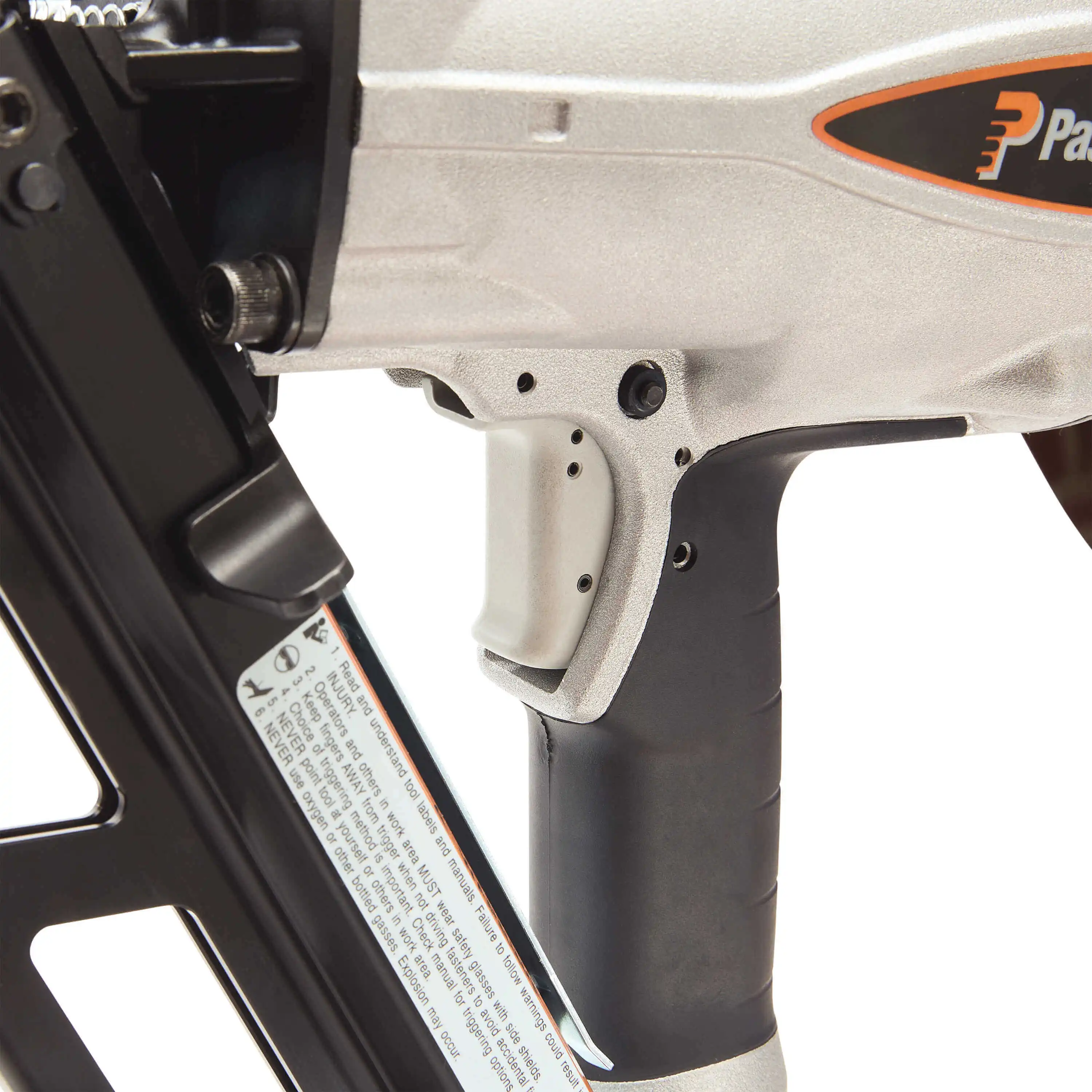

Ergonomic Handle – for greater comfort
On Board Allen Wrench – readily accessible to adjust depth of drive and service tool

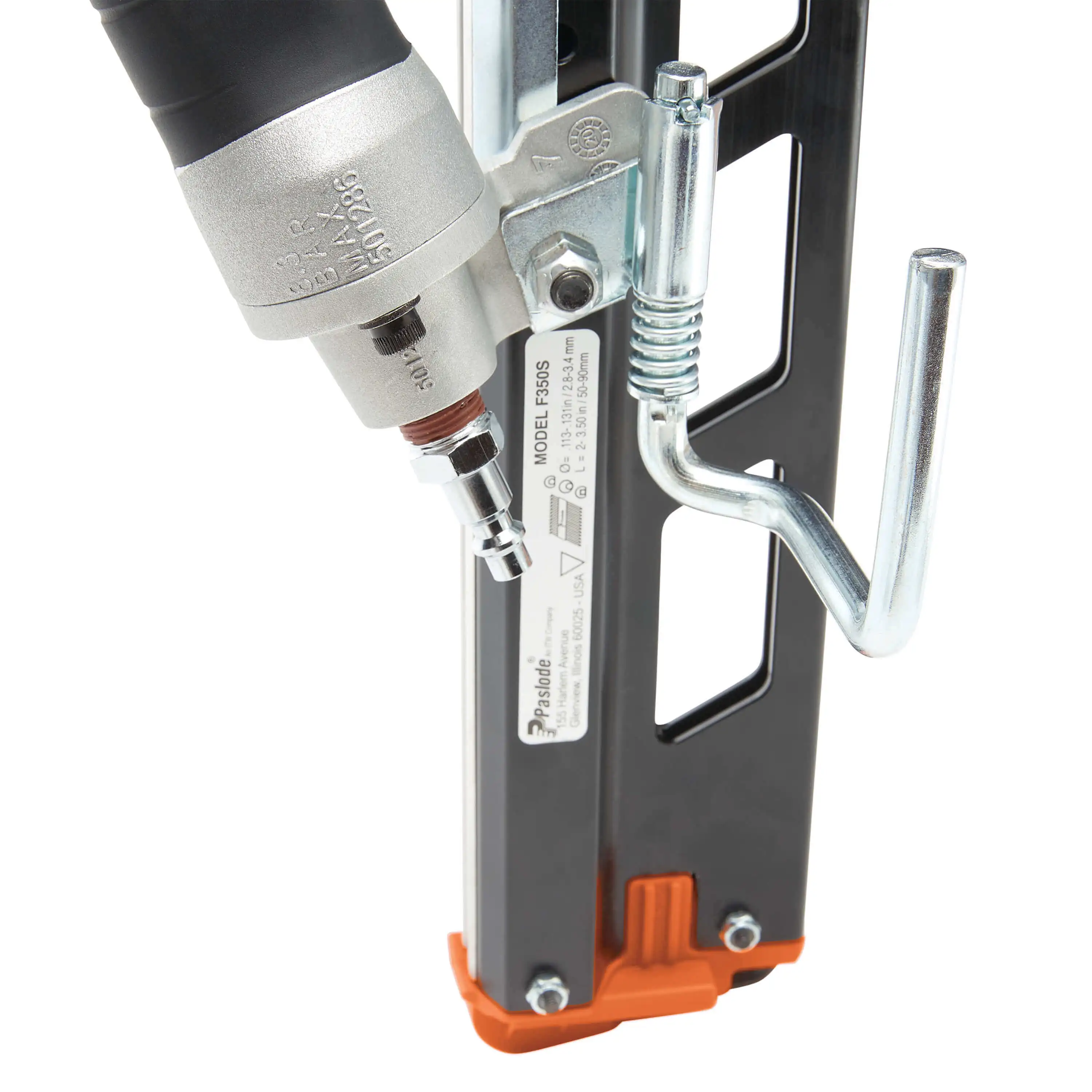

Rafter Hook – moves out of the way when not needed

Applications

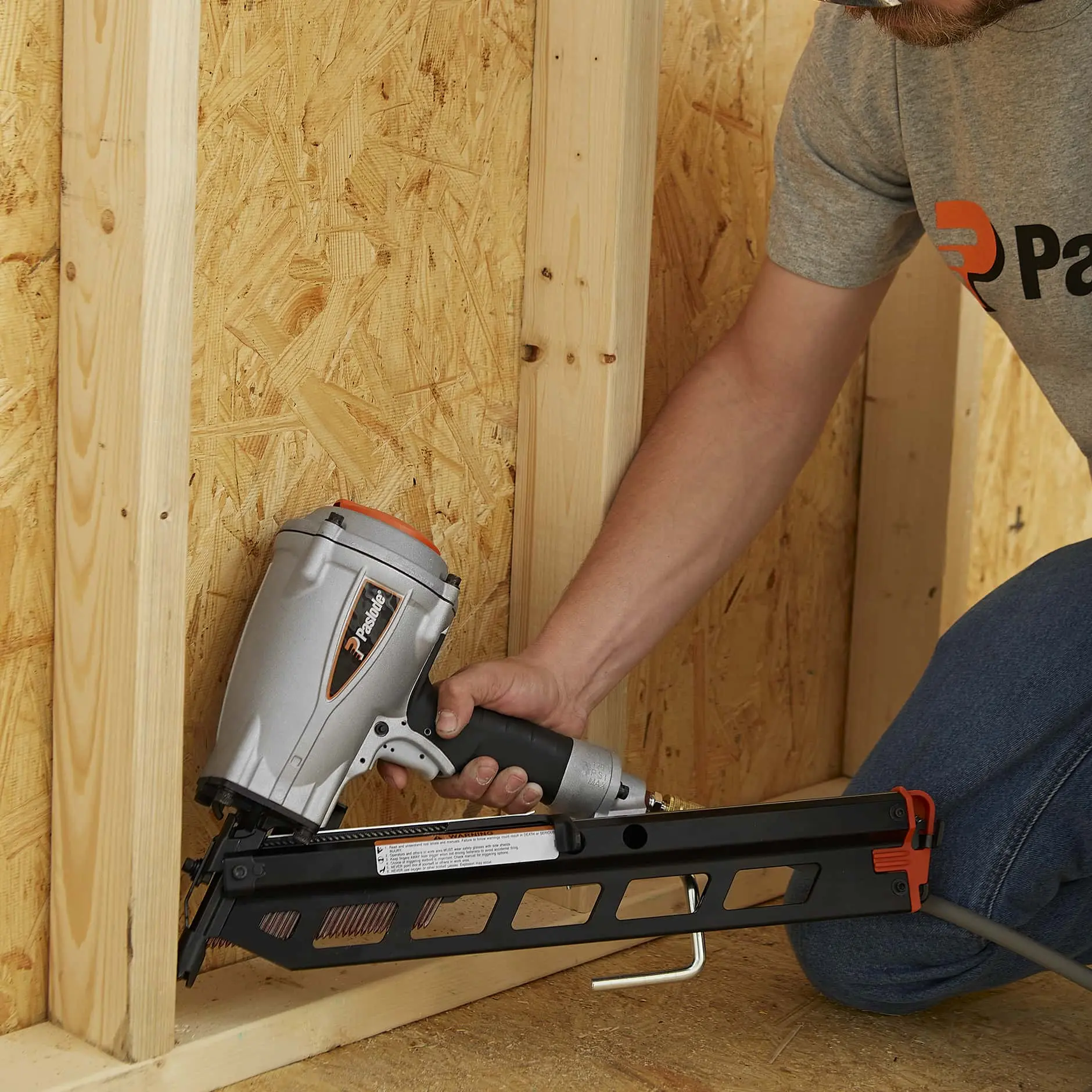

Wall Studs
Truss Attachments
Wall Panels
Rim & Floor Joists
Roof Decking
Blocking
Fencing

Manuals & Specs

Manuals & Documentation

Product Specs

Tool Model

F350-S

Tool Weight

8.4 lbs.

Item #

501000

Tool Dimensions

19.25" x 6.5" x 13.25"

Tool Warranty

1-year full warranty; 5-year extended limited warranty

Tool Speed

"6 nails per second*, sequential or selectable operation *under the condition of 110psi, 3-1/4 x .131 nails fired into pine wood"

Power Specs

Firing Mode

Sequential, Bump Fire

Operating Pressure

80-120 p.s.i. (5.5-8.3 bars)

Air Requirement

.082/cycle

Fastener Specs

Fastener Type

Paslode RounDrive® 30° Offset Full Head (Brite or Galvanized), Clipped Head Brite 30° Framing Nails

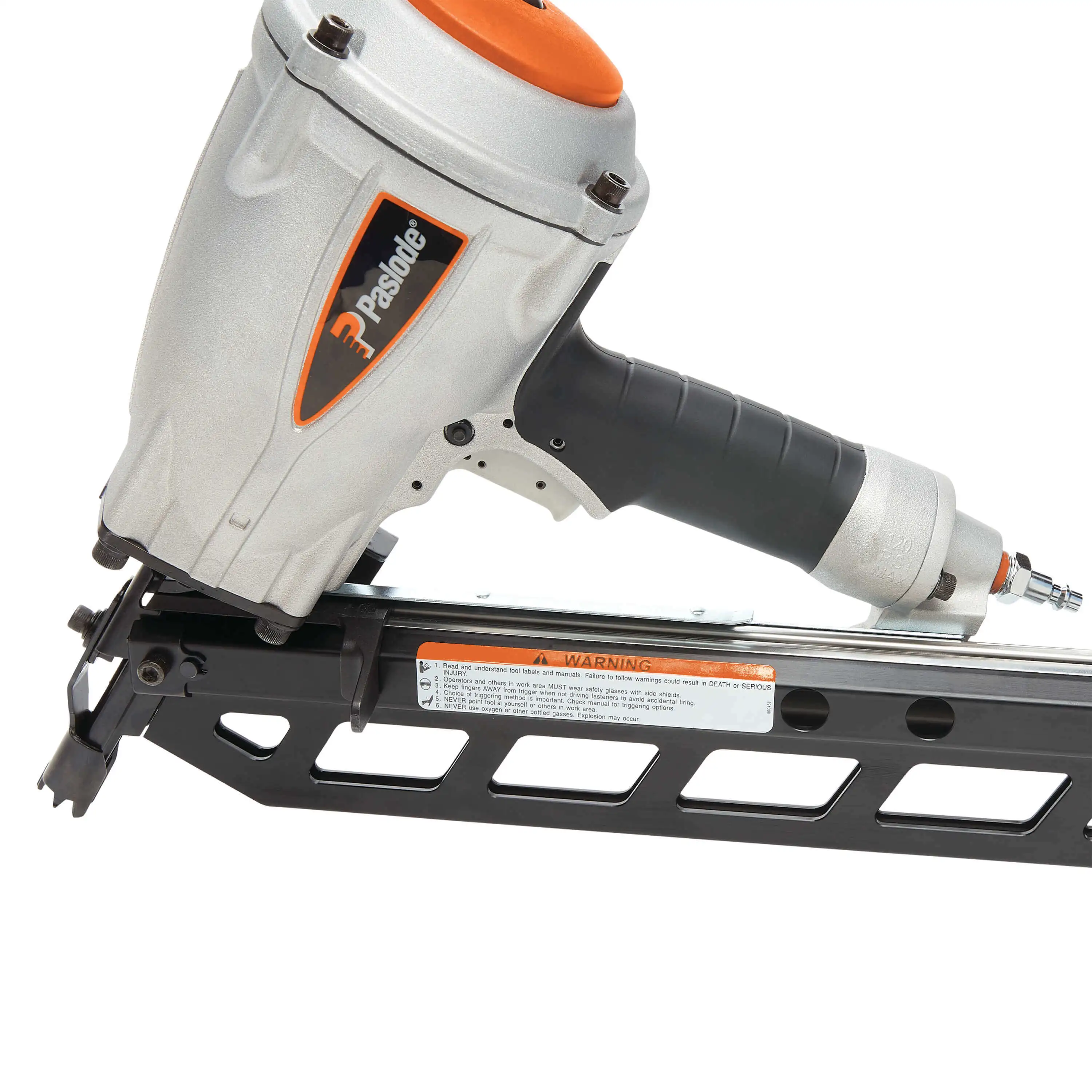

Fastener Capacity

2 strips (up to 84)

Fastener Diameter

.113 - .131

Fastener Length

2" - 3-1/2"

Fastener Angle

30°

Demos & Videos

Demo Videos

PowerMaster Plus Depth of Drive

Compatible Products

Fasteners

Brite 30 Degree Framing Nails

Hot Dipped Galvanized 30 Degree RounDrive® Framing Nails

Brite 30 Degree Framing Nails

Hot Dipped Galvanized 30 Degree RounDrive® Framing Nails

FAQs

How do I order a part online?

Genuine Paslode replacement parts, tune up kits, accessories, and repair service can be purchased online at itwconstructionparts.com.

Does Paslode manufacture stainless steel fasteners?

No, Paslode does not manufacture stainless steel 30 degree fasteners.

Does Paslode offer a full head nail?

Yes, Paslode manufactures coil nails which are full round head nails and Roundrive; strip nails that are full offset head nails. Paslode’s patented Roundrive; fasteners are designed to work with our 30 Degree framing nailers, both the Pneumatic 30 Degree Framing nailer and the Cordless 30 Degree nailer. Fasteners can be purchased through our retail and distribution channels. To find a Paslode dealer click the ‘Where to Buy’ tab on the top of the Paslode homepage.

What are the shear and pullout strengths of Paslode fasteners?

The ES Report-1539 contains information on the shear and pullout strengths of Paslode fasteners.

Can I use Paslode Hot Dipped Galvanized Nails in ACQ treated lumber?

Paslode Hot Dipped Galvanized and Paslode Galvanized Positive Placement Metal Connector Nails meet the ASTM A153 Class D specifications (1 oz/ft2 of zinc coverage) for use in ACQ treated lumber.

Can I use Paslode Finish Nails in an exterior application?

Paslode finish nails can be used for all interior trim applications and are not recommended for exterior applications where surface rust is not acceptable.

How do I find a Paslode Authorized Service Center?

To locate your nearest service location, click the "Find Service Center" tab on the "Where to Buy" page, and enter your zip code. Paslode recommends that tools needing service be repaired through your local Factory Authorized Service Network.
