Model: DF225C

Item #: 502950

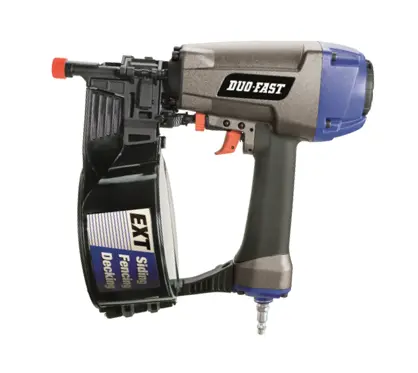

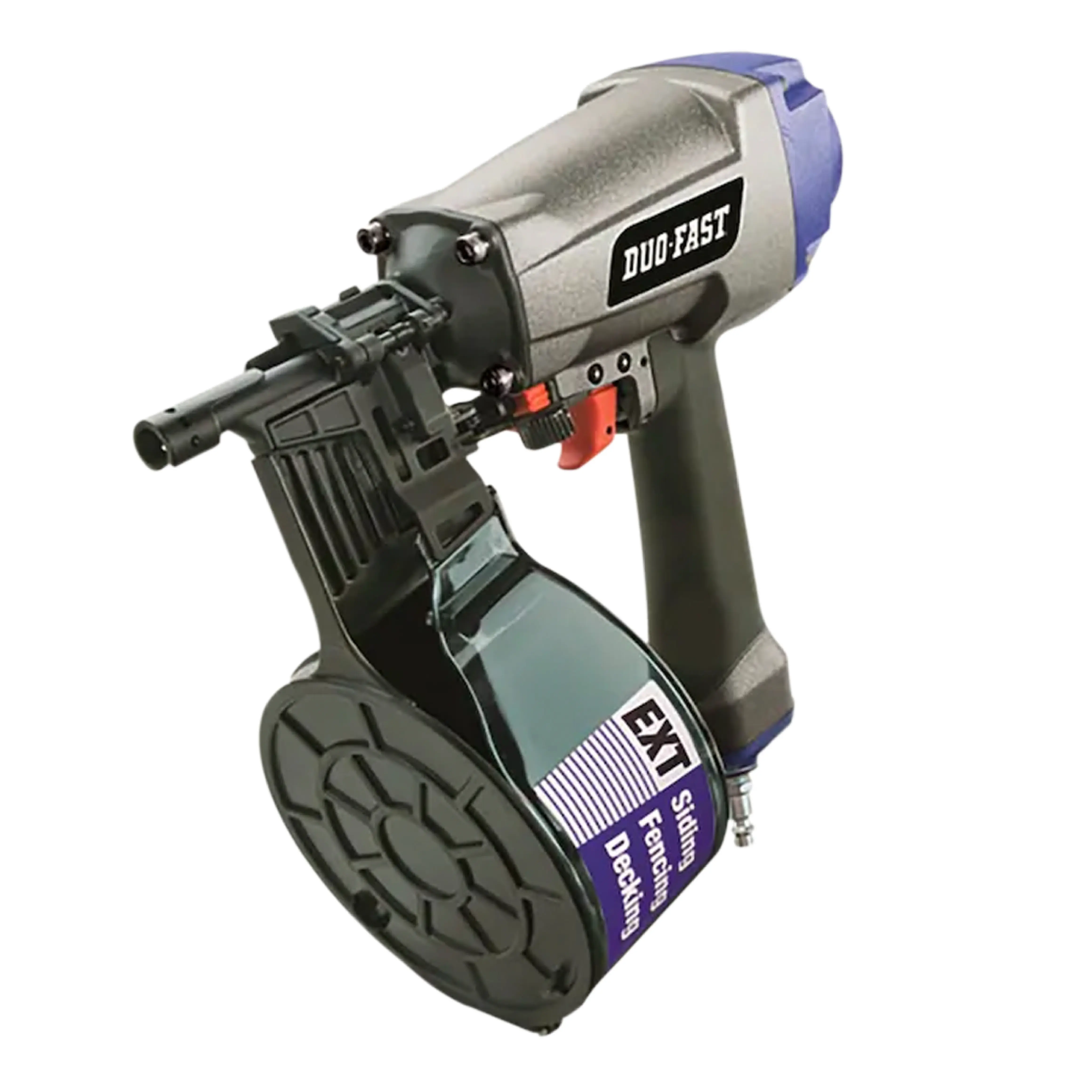

Pneumatic 0 Degree Coil Siding Nailer (DISCONTINUED)

Our Pneumatic 0 Degree Coil Siding Nailer will maximize your productivity with a high–capacity coil magazine, consistent depth of drive, and lightweight design.

Weighs only 4.5lbs
Fires up to 5 nails per second
Further reduce jams and misfires by using genuine Paslode nails

Paslode pneumatic nailers give you reliable performance that saves time with less maintenance.

502950

Pneumatic 0 Degree Coil Siding Nailer (DISCONTINUED)

Where to Buy

Features & Applications

LIGHTWEIGHT AND BALANCED

Increase comfort to keep working longer and finish jobs faster.

CONSISTENT

Reliable depth of drive means greater efficiency on jobsites.

CLEAN FINISH

Eliminates wire flagging.

Features

Operating Features

Tool Free Adjustable Depth of Drive – quickly get the right nail depth· Dual–mode Trigger – for sequential or bump fire operation
No Mar Tip – prevents scratching and markings on work surfaces
Tool–free Adjustable Exhaust – keeps debris out of your eyes

Design Features

Clear Magazine – easily see how many nails you have left
Ergonomic Handle – ergonomic design provides greater comfort
Belt Hook – keeps tool at your side

Applications

Hardie Board Siding
Fiber Cement Siding
Wood Fiber Siding
Cedar Board Siding
Fencing
Decking

Manuals & Specs

Manuals & Documentation

Product Specs

Tool Model

DF225C

Tool Weight

4.5 lbs

Item #

502950

Tool Dimensions

12-1/2" x 5-3/4" x 12-5/8"

Tool Warranty

1-year full warranty; 5-year extended limited warranty

Tool Speed

5 nails per second

Power Specs

Firing Mode

Sequential, Bump Fire

Operating Pressure

80-120 psi

Air Requirement

.055-.083/cycle

Fastener Specs

Fastener Type

CS or CI Series Round Head Plastic Collated Coil Nails; Smooth, Ring or Screw Shank

Fastener Capacity

300 CS/CI Coil Nails

Fastener Diameter

.80 - .105

Fastener Length

1-1/2" – 2-1/4"

Fastener Angle

0°

Compatible Products

Fasteners

Hot Dipped Galvanized 0 Degree 300 Coil Siding Nails

Electro Galvanized 0 Degree 300 Coil Siding Nails

Hot Dipped Galvanized 0 Degree 300 Coil Siding Nails

Electro Galvanized 0 Degree 300 Coil Siding Nails

FAQs

How do I order a part online?

Genuine Paslode replacement parts, tune up kits, accessories, and repair service can be purchased online at itwconstructionparts.com.

Does Paslode manufacture stainless steel fasteners?

No, Paslode does not manufacture stainless steel 30 degree fasteners.

Does Paslode offer a full head nail?

Yes, Paslode manufactures coil nails which are full round head nails and Roundrive; strip nails that are full offset head nails. Paslode’s patented Roundrive; fasteners are designed to work with our 30 Degree framing nailers, both the Pneumatic 30 Degree Framing nailer and the Cordless 30 Degree nailer. Fasteners can be purchased through our retail and distribution channels. To find a Paslode dealer click the ‘Where to Buy’ tab on the top of the Paslode homepage.

What are the shear and pullout strengths of Paslode fasteners?

The ES Report-1539 contains information on the shear and pullout strengths of Paslode fasteners.

Can I use Paslode Hot Dipped Galvanized Nails in ACQ treated lumber?

Paslode Hot Dipped Galvanized and Paslode Galvanized Positive Placement Metal Connector Nails meet the ASTM A153 Class D specifications (1 oz/ft2 of zinc coverage) for use in ACQ treated lumber.

Can I use Paslode Finish Nails in an exterior application?

Paslode finish nails can be used for all interior trim applications and are not recommended for exterior applications where surface rust is not acceptable.

How do I find a Paslode Authorized Service Center?

To locate your nearest service location, click the "Find Service Center" tab on the "Where to Buy" page, and enter your zip code. Paslode recommends that tools needing service be repaired through your local Factory Authorized Service Network.

Pneumatic 0 Degree Coil Siding Nailer (DISCONTINUED)

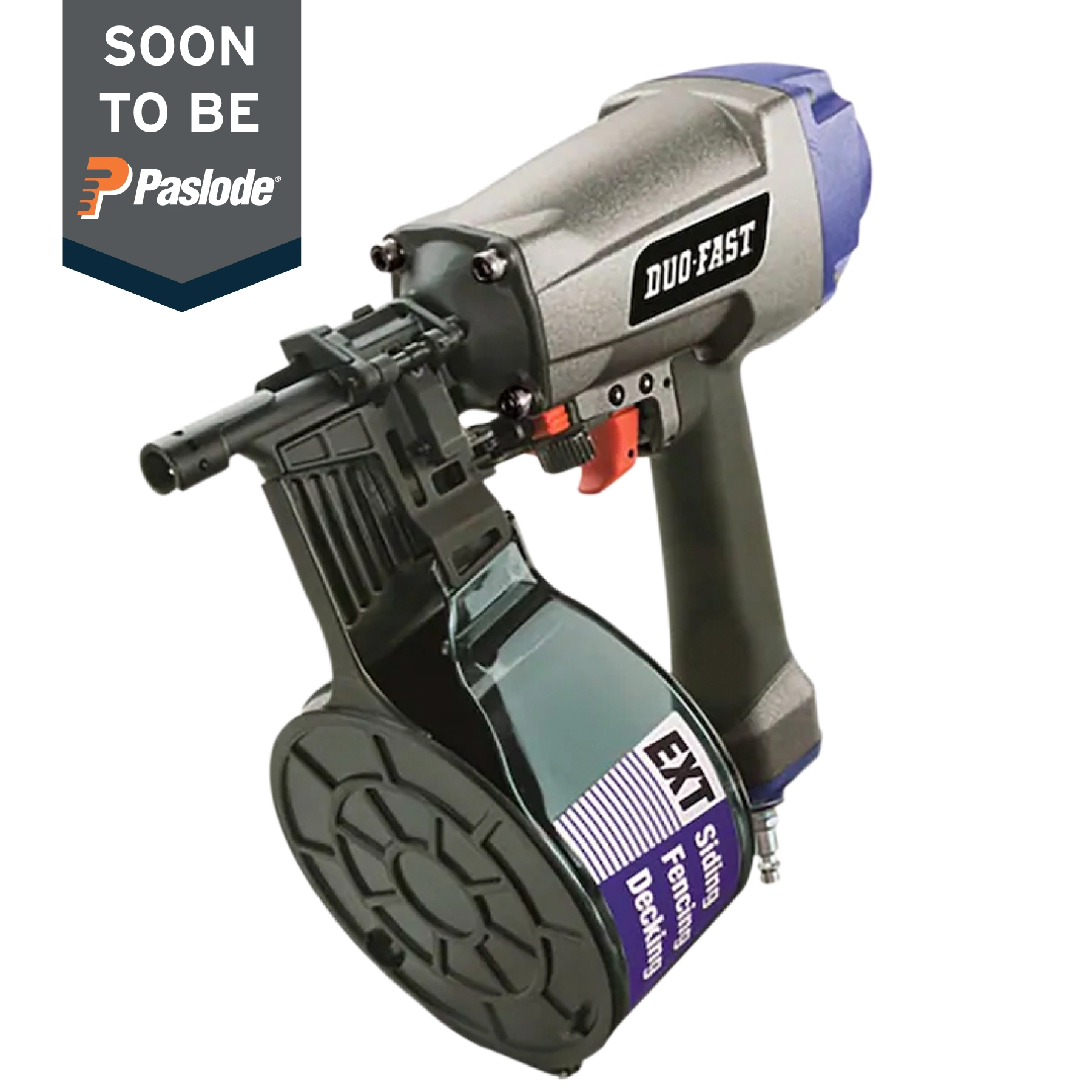

Duo-Fast 0 Degree Coil Siding Nailer to become Paslode

Pneumatic 0 Degree Coil Siding Nailer (DISCONTINUED)

Pneumatic 0 Degree Coil Siding Nailer (DISCONTINUED)
