Item #: 816008

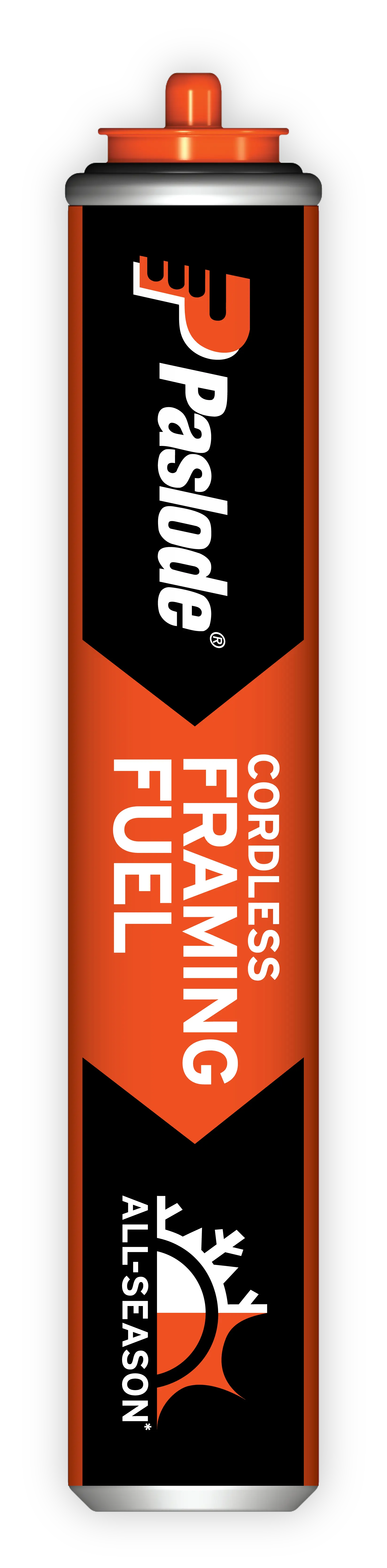

Cordless Framing Fuel Cell

Our Cordless Framing Fuel is easy to load and gives you the power to drive up to 1,200 framing nails. It will keep you working in cold temperatures down to 14ºF.

No need for fuel cell warm–up
No need for double pumping
Works when pneumatics won’t
Works in Paslode Framing Nailers CFN325XP (SKU # 906300), CF325XP (SKU # 905600) and CF325Li (SKU # 902600), CF325XPRO24 (SKU # 906800)

Winner of the 2016 Award for Innovation at the International Aerosol & Dispensing Forum (ADF).

Also available in convenient Fuel + Nail Packs.

Where to Buy

816008

Cordless Framing Fuel Cell

Where to Buy

Features & Applications

Features

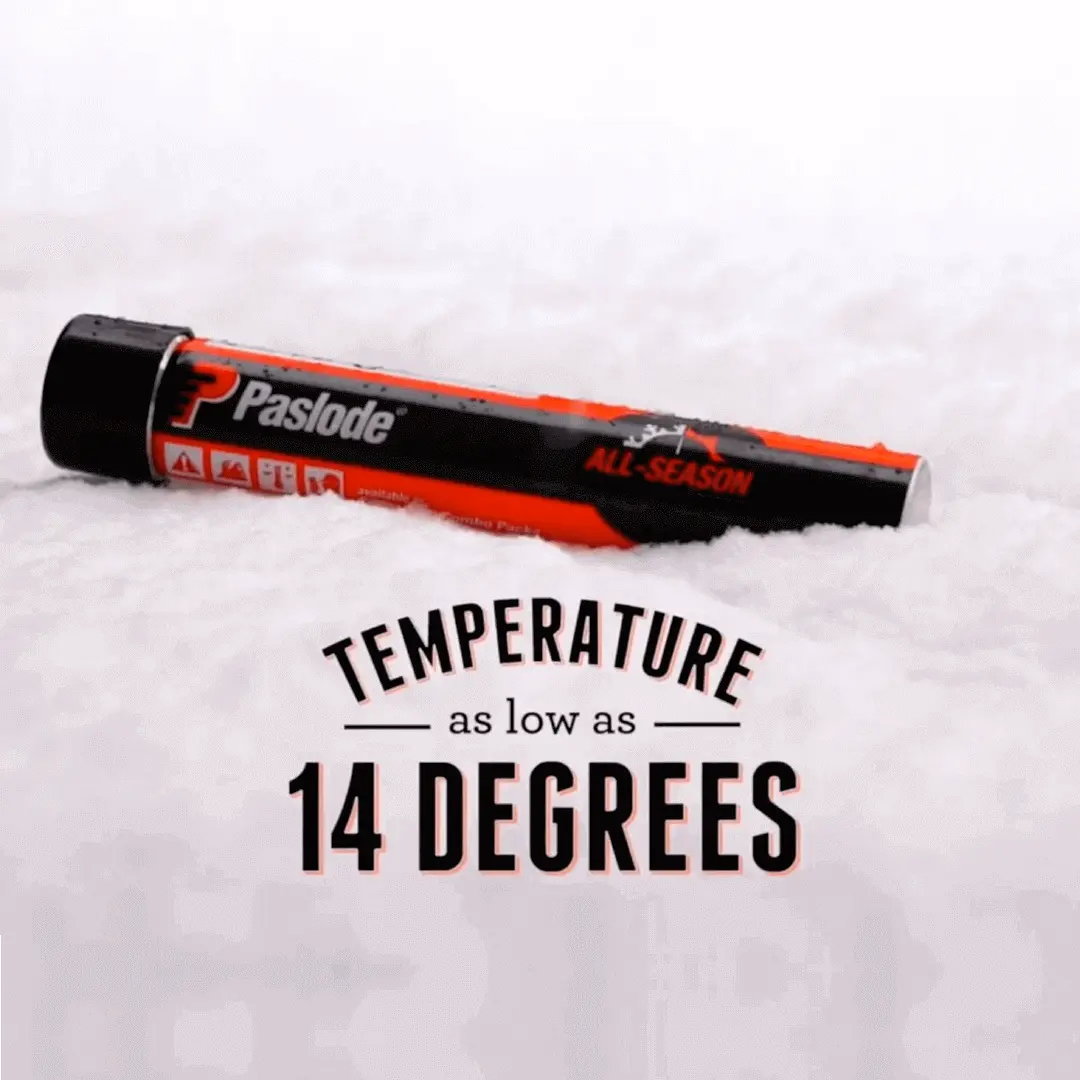

All Season Formula – operate tools in temperatures as low as 14 degree Fahrenheit
Drop in Design – just load into tool and go

Before using older fuel cells, check the “Best Used Before” date printed on the bottom of the can

Applications

Wall Studs
Truss Attachments
Wall Panels
Rim & Floor Joists
Roof Decking
Blocking
Fencing

Manuals & Specs

Manuals & Documentation

Product Specs

Item #

816008

Quantity

1 Pack

Size

1.32 oz

Fuel Life

27 Months

#/Nails

Up to 1,200 nails

Compatible Products

Tools

Cordless XPro 30° Framing Nailer

Cordless XP 30 Degree Framing Nailer (DISCONTINUED)

Cordless XPro 30° Framing Nailer

Cordless XP 30 Degree Framing Nailer (DISCONTINUED)

FAQs

Can I use my Framing Fuel Valve Adapters more than once?

The on-can valves are designed to be used for one cell only, but will continue to work when re-used on up to 2 additional fuel cells. There is a dynamic seal in the assembly that will eventually start to leak if used too much.

How do I order a part online?

Genuine Paslode replacement parts, tune up kits, accessories, and repair service can be purchased online at itwconstructionparts.com.

Do Fuel Cells have a shelf life?

Fuel cells have a “Best Used By” date printed on the bottom of the can. A fuel cell will often work beyond that date, but if a tool starts to work intermittently it could be because the fuel cell has expired. An expired fuel cell has lost enough internal pressure to degrade its performance.

We recommend buying only enough fuel to complete the job. Always check the date on the bottom of the can before purchasing or using a fuel cell to ensure it is not past the best used by date.

How do I know when a Fuel Cell is empty?

First make certain you are away from any open flames or heating elements. Hold the fuel cell upside down so the black valve is toward the floor. Push the white stem on the black valve several times against a hard surface. Each time you depress the white stem a small “puff” of fuel should be dispensed. If fuel does not come out, the cell is empty.

What does it mean when the lights on the charger flash red and green?

It is normal for the lights on the charger to flash red/green for up to 20 minutes. The charger is slowly building the charge in the battery until the battery is able to accept the full output of the charger. This protects the battery and increases the life of the battery. If the lights continue to flash red/green after 20 minutes but go to a steady green when the battery is removed, it is likely there is a problem with the battery.

How do I find a Paslode Authorized Service Center?

To locate your nearest service location, click the "Find Service Center" tab on the "Where to Buy" page, and enter your zip code. Paslode recommends that tools needing service be repaired through your local Factory Authorized Service Network.

Cordless Framing Fuel Cell

Cordless Framing Fuel Cell

Cordless Framing Fuel Cell
