Model: CS-5000

Item #: 1011916

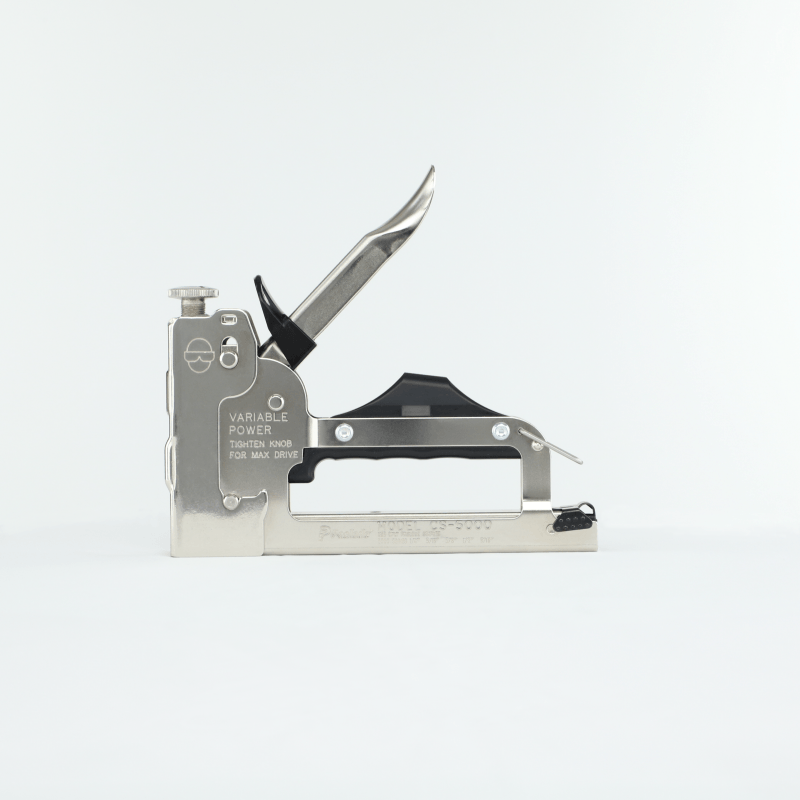

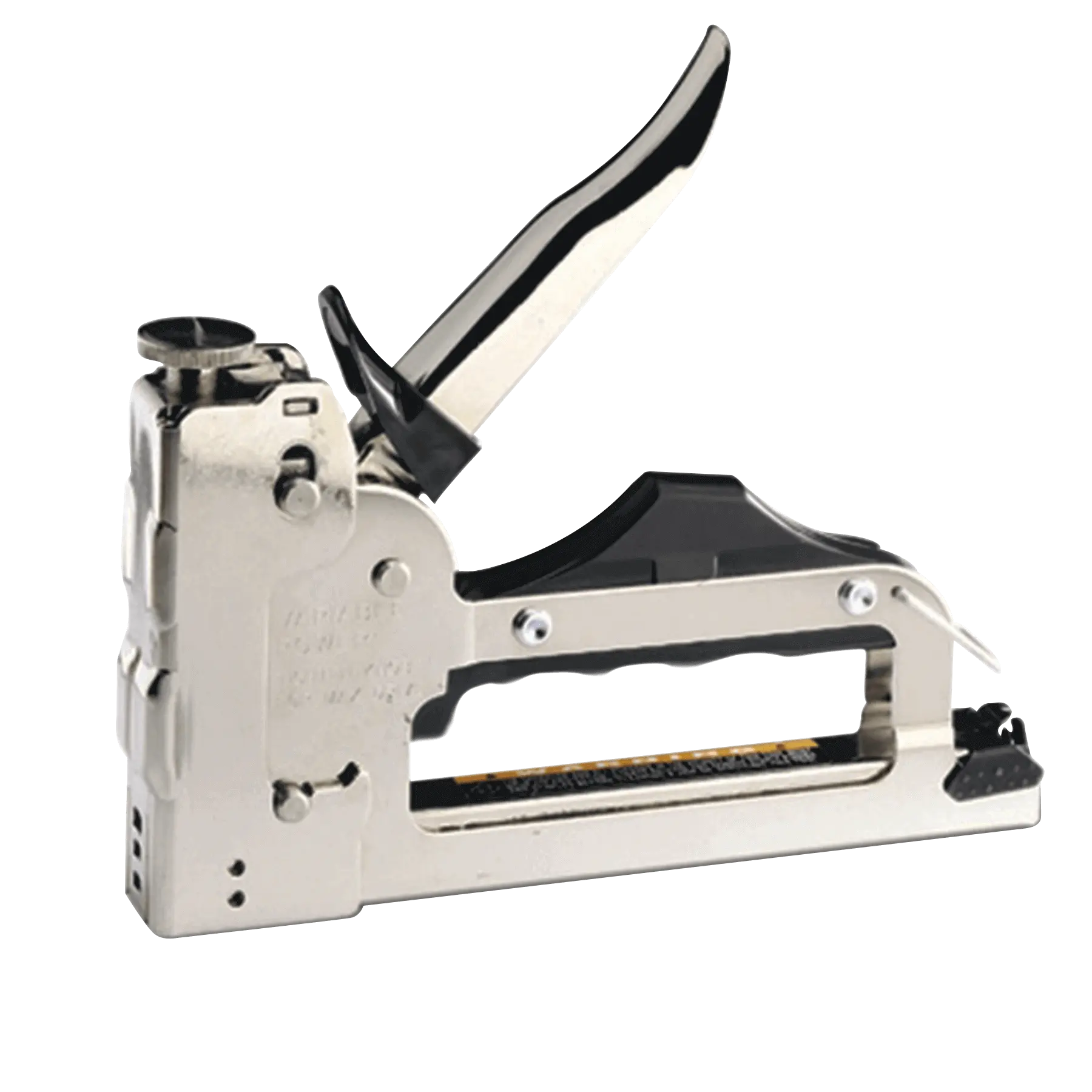

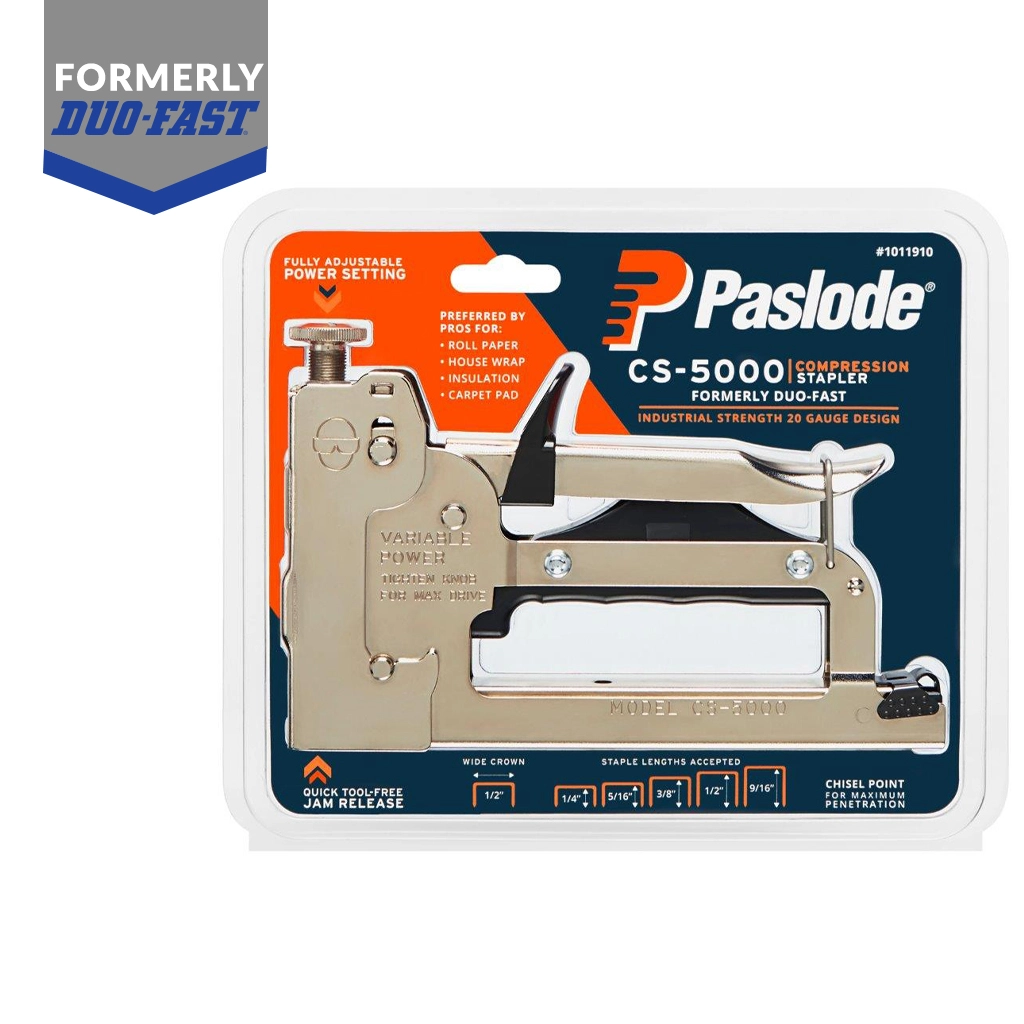

CS5000 Compression Stapler

Our CS5000 Compression Stapler is a multi–purpose stapler allowing you to drive nails with an easy push/squeeze.

Weighs only 1.8lbs
Drives 1/4" to 9/16" length staples
Use with genuine Paslode or Duo Fast staples for optimize performance

Where to Buy

1011916

CS5000 Compression Stapler

Where to Buy

Features & Applications

SIMPLE

Install staples with an easy push/squeeze.

VERSATILE

Adjust installation power for the specific job requirements.

PROFESSIONAL

Engineered specifically for professional building applications.

Features

Operating Features

Fully Adjustable Power Setting – Impact pressure can be adjusted to suit the job
Anti–Jam Staple Exit – no tool required to clear jams

Design Features

Rugged Steel Construction – reliable in high volume applications
Chrome Finish – resists wear and tear during use
Compact Design – easy access for tight work areas
Rear Loading Magazine – holds full strip of 20 gauge, 1/2" wide crown fine wire staples

Applications

Insulation
Corner Bead
Multi-Purpose

Manuals & Specs

Product Specs

Tool Model

CS-5000

Tool Weight

1 lb. 13oz.

Item #

1011916

Tool Dimensions

7.5" x 1.50" x 4.75"

Power Specs

Firing Mode

Sequential, Bump Fire

Fastener Specs

Fastener Type

5000 Series

Fastener Capacity

84 Staples (1 strip)

Fastener Diameter

20 Ga.

Fastener Length

1/4" - 5/16"

Staple Crown Width

1/2"

Compatible Products

Fasteners

20 Gauge Galvanized 1/2" Crown 5000 Series Staples

FAQs

Does Paslode offer tool repair kits?

Paslode offers the following repair kits:

219305 / Cordless Framing Tune Up Kit for 900420 (IMCT)
219235 / For F350S / 501000 Repair Kit
219426 / For F350S / 50100 Premium Rebuild w/ main valve assembly
219224 / Trigger Valve Repair Kit for 3000, 4000, 5000 Series, F350S
219377 / Cordless Framing Tune Up Kit for CF325/CF325Li/XPmodels - For PF350S / 502000 and DF350S
219352 / 502000

The kits can be purchased at a sales location nearest you or online:

Does Paslode sell refurbished nailers?

Paslode offers factory-refurbished tools at itwconstructionparts.com. All tools are refurbished by trained Paslode Factory-Service Technicians. Genuine Paslode replacement parts are used where necessary and tools are cleaned to look like new.

Product Offerings include:

Factory Refurbished Cordless and Pneumatic nailers
Replacement Parts
Tune Up Kits and Accessories for Framing and Trim/Finish nailers
Repair Center

How do I order a part online?

Genuine Paslode replacement parts, tune up kits, accessories, and repair service can be purchased online at itwconstructionparts.com.

What type of oil should I use in my Pneumatic Nailer?

Use only pneumatic tool oil. Paslode sells a summer grade oil and a winter grade oil with antifreeze. The part number for Paslode pneumatic oil is 403720 and the part number for the oil with antifreeze is 219090. Note: Lubricating oil with antifreeze should only used with temperatures below 32degF.

Do not use WD40, motor oil, transmission fluid or aerosol lubricants. These lubricants will destroy the o-rings and seals inside the nailer.

Can I use something other than Paslode Degreaser Cleaner to clean my nailer?

Paslode Degreaser Cleaner is specially formulated for Paslode Cordless and pneumatic nailers. Other products may damage electrical components, plastic parts, and rubber parts. They may also leave a residue which could cause damage to the nailer or injury to the operator of the nailer.

What type of oil should I use after the nailer has been cleaned?

Use only Paslode Cordless Tool Lubricating Oil part number 401482. It is specially formulated to withstand the high temperatures generated by Cordless nailers. Using other oils can cause the rapid build-up of combustion residue leading to poor nailer performance and more frequent cleanings.

Will other brands of nails work in my Paslode Nailer?

Paslode nailers and fasteners are engineered to work together as a system. Other brands of nails may not be designed or manufactured to the same specifications or quality standards as Paslode. Using nails that do not meet Paslode’s specification may cause damage to the tool and injury to the operator or bystanders, and may void warranty.

The nailer fires but no nail is being driven. What causes this?

There are several things that could cause a nailer to “blank fire”:

If your tool does not have a lockout, check that you haven’t run out of fasteners
There may be a nail jam preventing the fasteners from moving forward. For information on clearing a nail jam, visit the Tools Manuals page and reference your Tool's Operating Manual
Cordless nailers may require cleaning. If the tool has driven 10,000 nails or more, it may require cleaning.

How do I adjust the depth of drive for an F350 Framing Nailer?

Do not attempt to operate or service the nailer until you have read and understood all safety precautions and manual instructions. Disconnect the air and remove fasteners from the nailer when making any adjustments or servicing it. The F350 Framing nailer has a 3/16 hex key located in the rear of the magazine. To adjust the depth of the nail, loosen the bolt on the work contacting element with the hex key. Raise the work contact up to drive the nail deeper or lower the work contact to drive the nail more flush. Tighten the bolt on the work contact and test the tool.

How do I find a Paslode Authorized Service Center?

To locate your nearest service location, click the "Find Service Center" tab on the "Where to Buy" page, and enter your zip code. Paslode recommends that tools needing service be repaired through your local Factory Authorized Service Network.
