Model: IM200Li.2

Item #: 918100

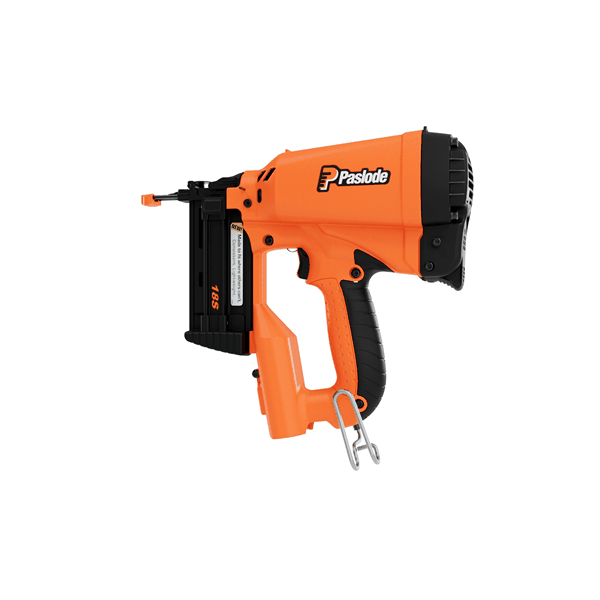

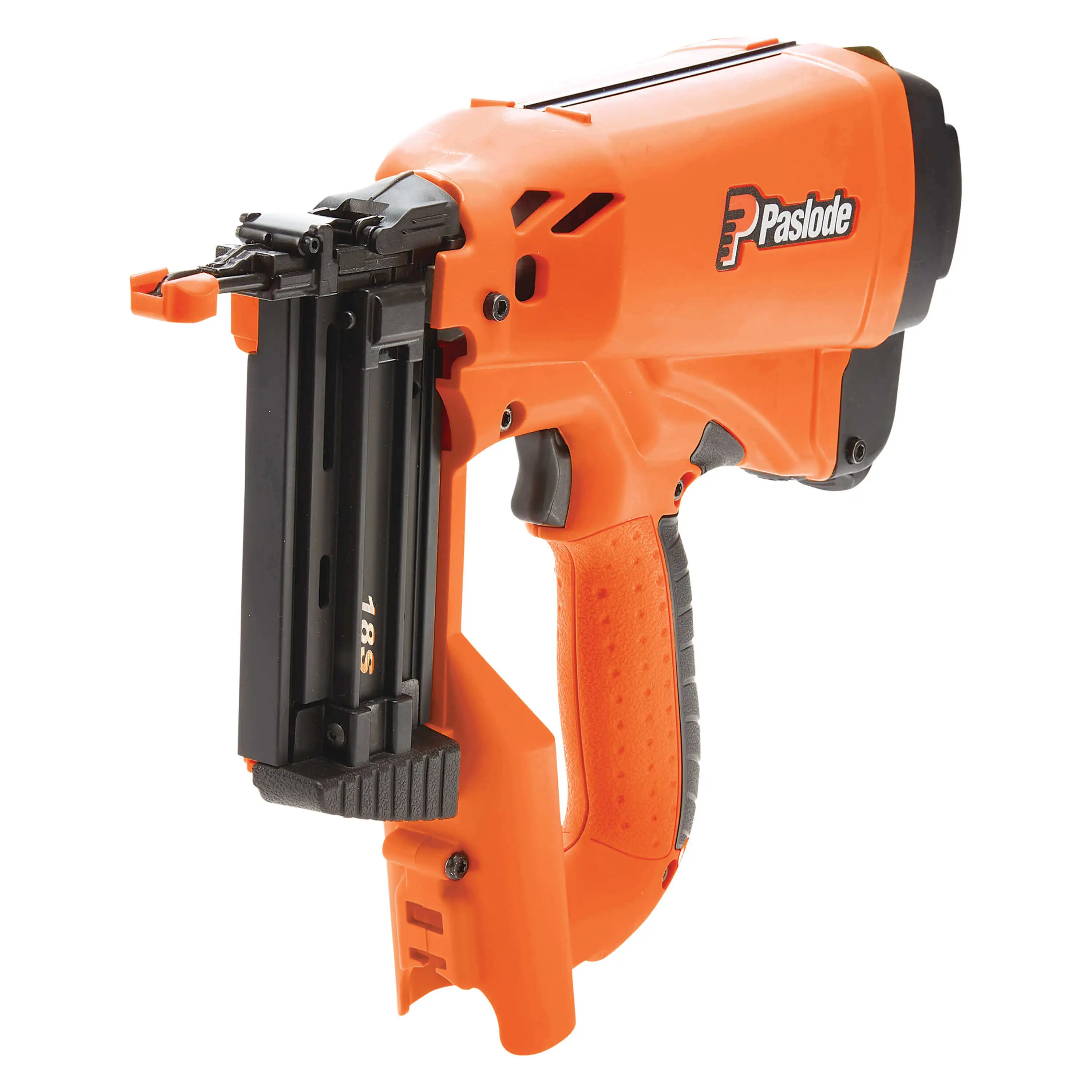

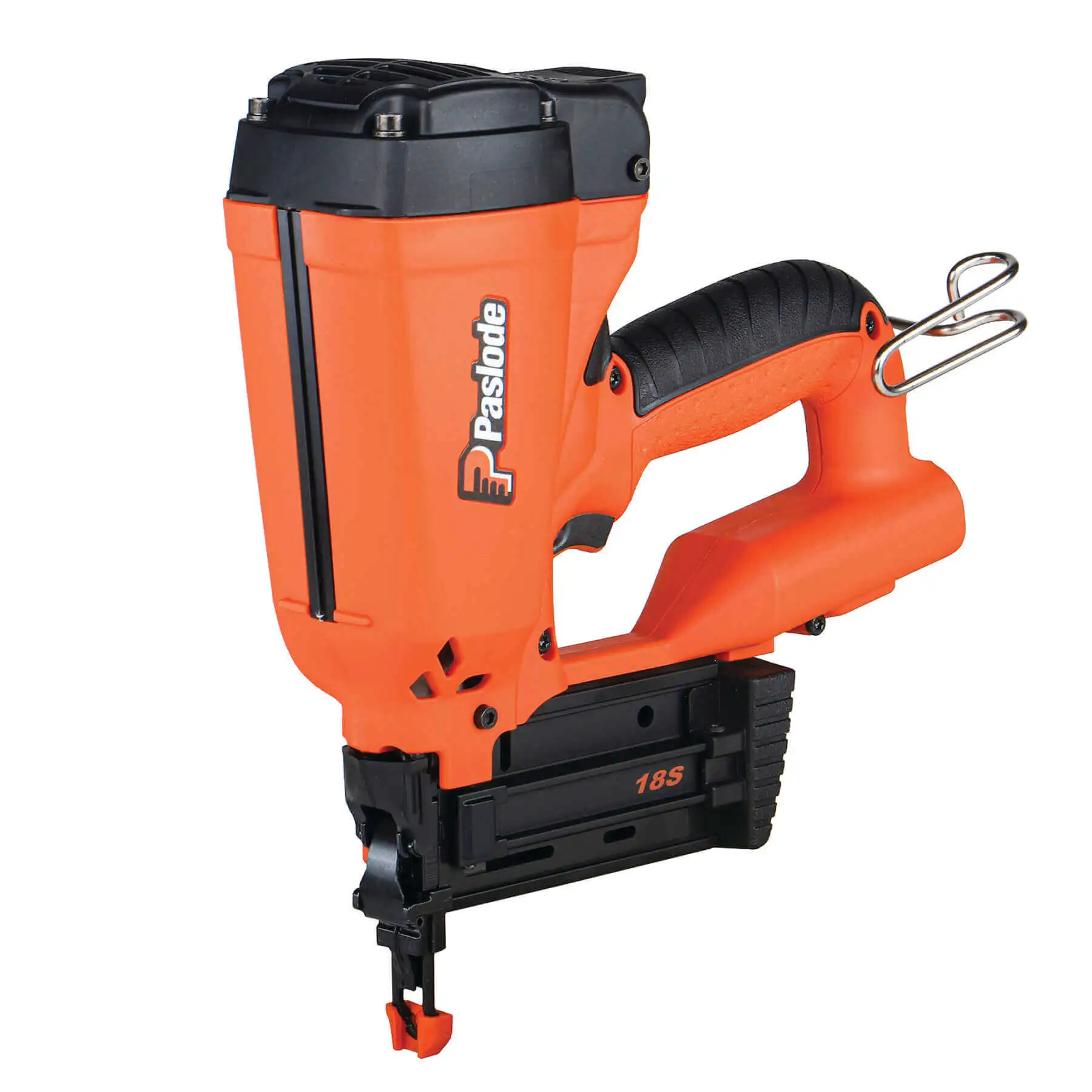

Cordless 18 Ga Brad Finish Nailer Single-Strip (DISCONTINUED)

The Cordless 18 Ga Brad Finish Nailer Single-Strip is the lightest cordless brad nailer on the market and gives you superior access to tight spaces so you are able to fasten in areas that aren’t easily accessible

Weighs only 4.25lbs
Drives 12,000 nails on a fully charged battery
Drives 1,200 nails on a full fuel cell
Reduce jams and misfires by using genuine Paslode nails

Paslode’s Fuel System makes our cordless nailers lighter, more reliable, and more durable than battery only nailers. We're so confident in our fuel system that we back each of our cordless nailers with a 2-Year Service Promise. If anything goes wrong with your nailer, we'll fix it for free.

918100

Cordless 18 Ga Brad Finish Nailer Single-Strip (DISCONTINUED)

Where to Buy

Features & Applications

MANEUVERABLE

Able to fit in tight spaces where others can’t.

PRECISE

Drives nails flush for high quality craftsmanship.

LIGHTWEIGHT

The lightest, cordless nailer on the market makes for reduced fatigue and increased productivity.

Features

Operating Features

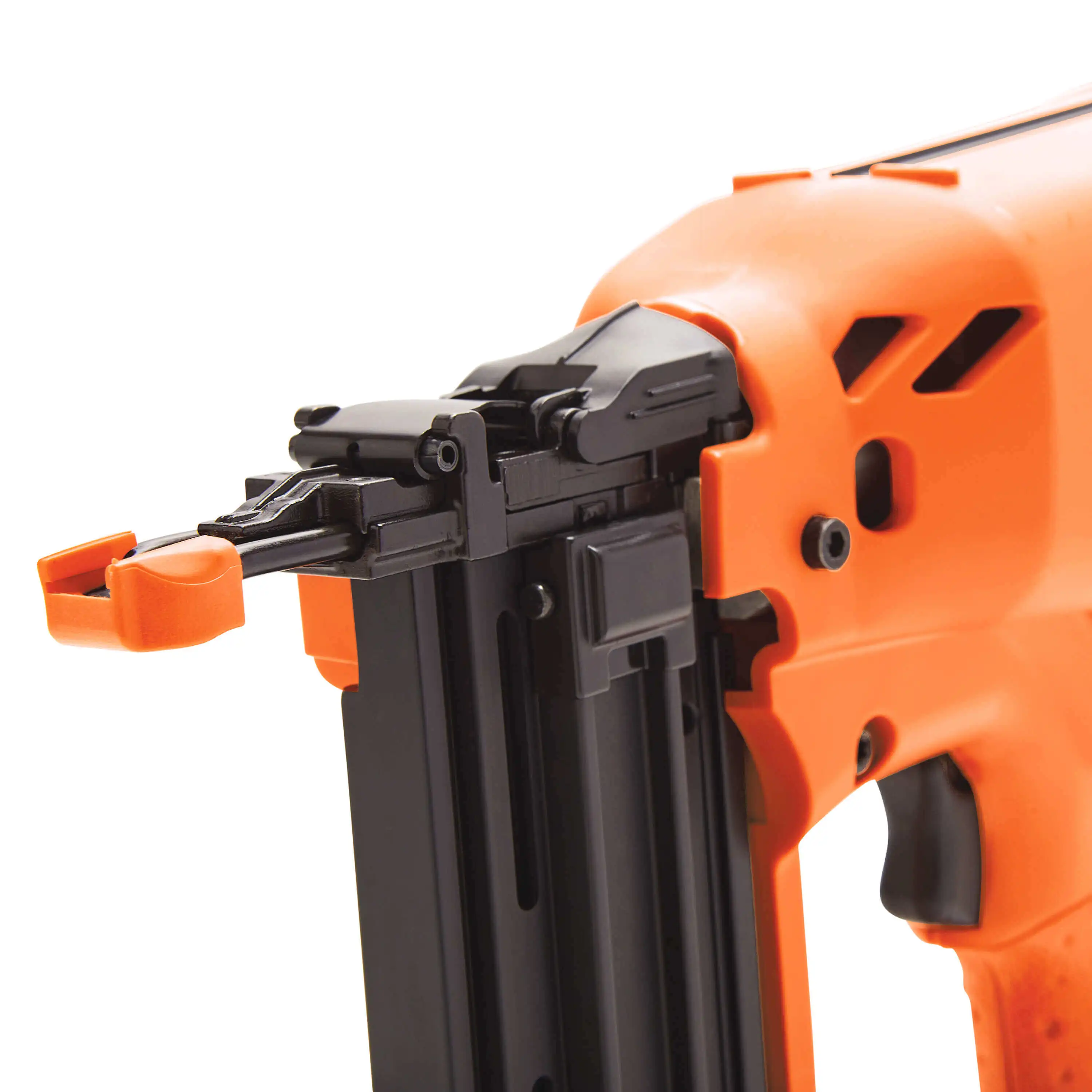

Tool Free Adjustable Depth of Drive – quickly get the right nail depth

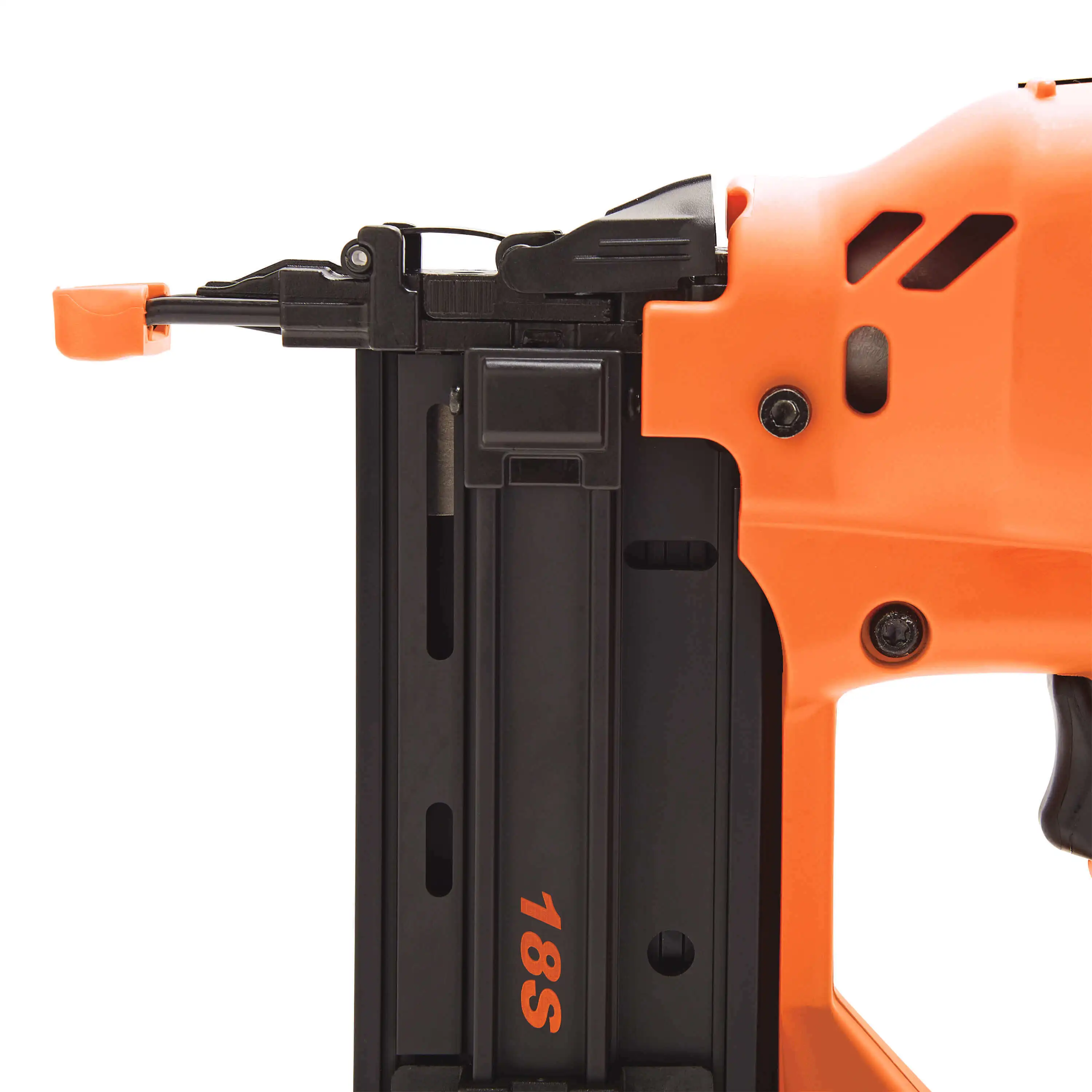

No–mar Tip – protects premium wood
Long Fan Run Time – mixes air with fuel and provides cooling for greater productivity

Design Features

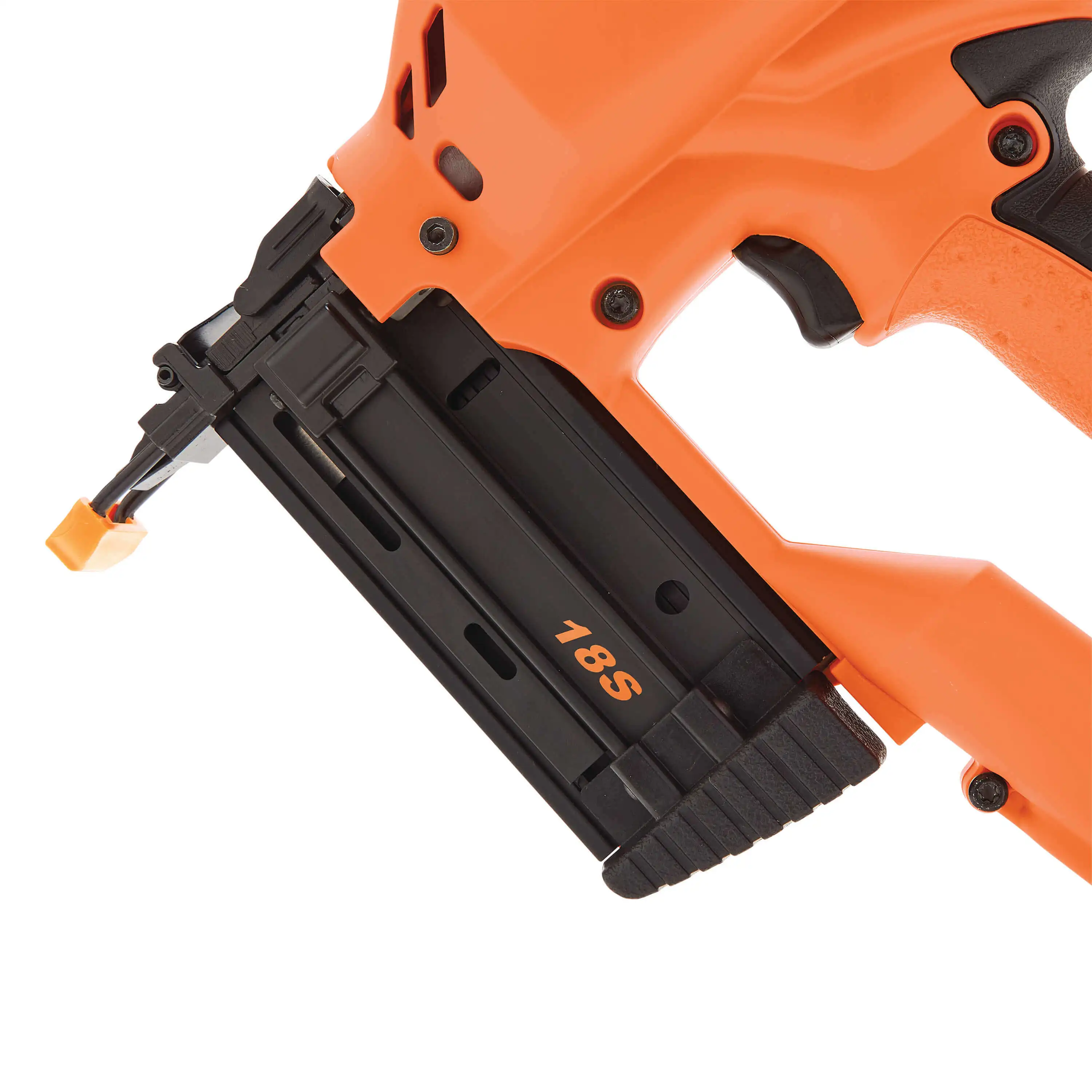

Single–Strip Magazine – superior access to tight spaces

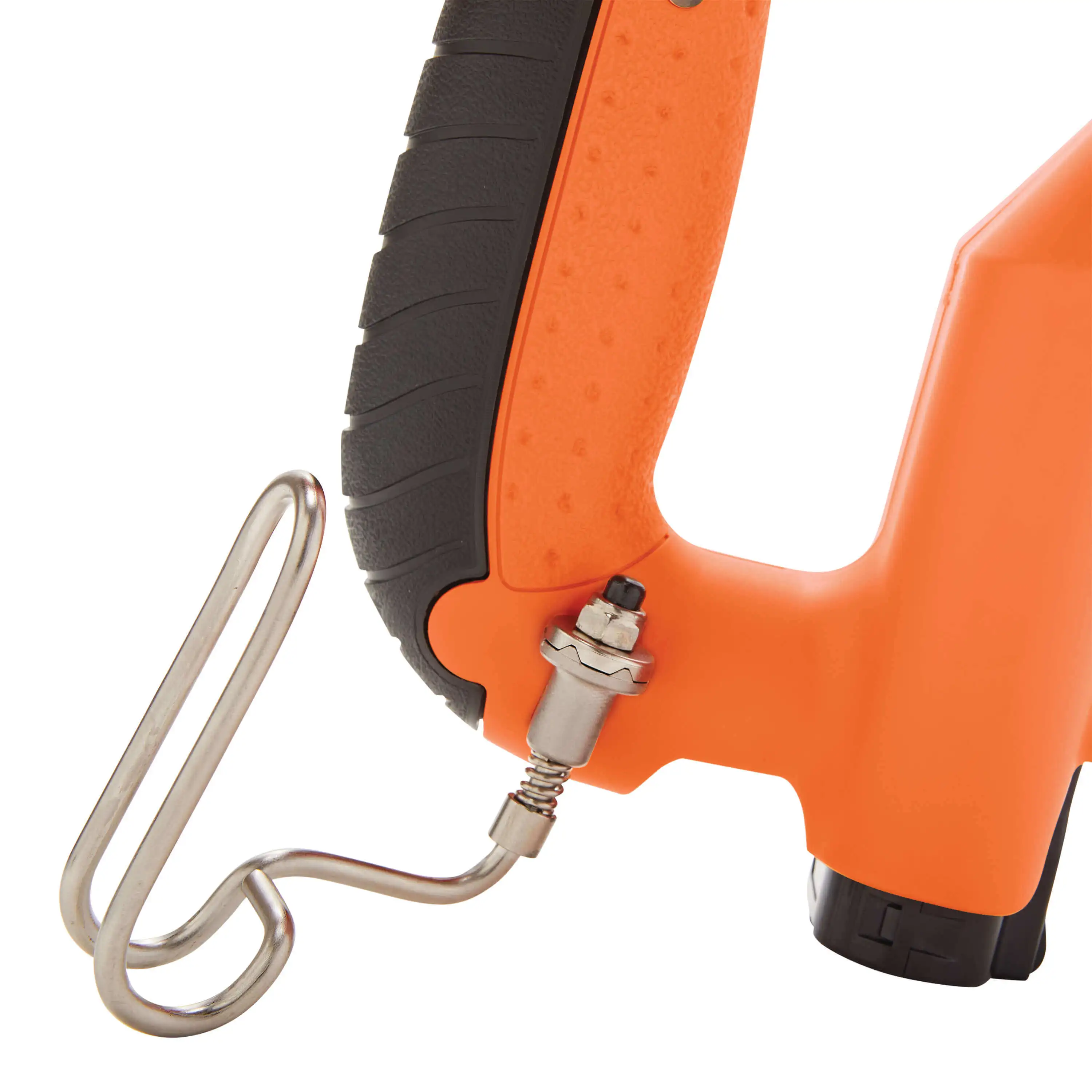

Belt Hook – keeps tool at your side

Power Source Features

Drop–in Fuel System – fast & easy loading
Li Ion Battery – works with all Paslode cordless nailers
Battery Quick Charge – 2 minutes gives 200 extra nails

Applications

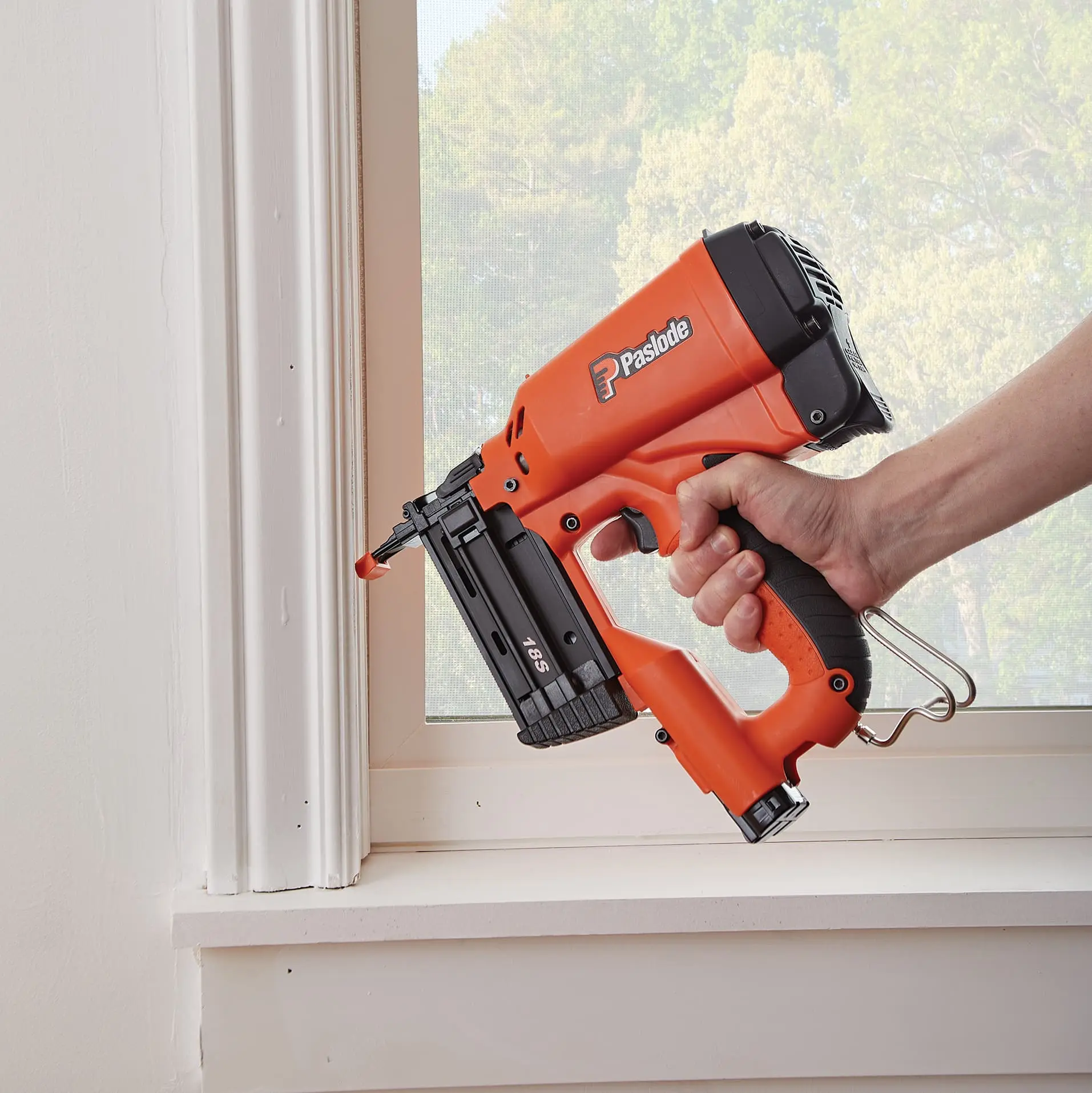

Door and window casing
Baseboard
Molding
Paneling
Chair Rail
Picture molding and other decorative trim

Manuals & Specs

Manuals & Documentation

Product Specs

Tool Model

IM200Li.2

Tool Weight

4.25 lbs.

Item #

918100

Tool Dimensions

11" x W x 11-1/2"

Tool Warranty

1-year full warranty; 5-year extended limited warranty

Tool Speed

2-3 nails per second

Power Specs

Fuel Type

Cordless Finish Fuel Cell

Battery

Cordless 7V Li-ion Battery

Fuel Life

21 months (check date code on bottom of fuel cell)

Battery Life

12,000 Shots

Nails per Fuel Cell

Approximately 1,200 nails

Firing Mode

Sequential

Fastener Specs

Fastener Type

18 Ga Chisel Point - Smooth, Galvanized

Fastener Capacity

70 (1 Strip)

Fastener Diameter

18 Ga

Fastener Length

5/8" - 2"

Fastener Angle

Straight Collation

Demos & Videos

Demo Videos

Maintenance

Depth of Drive

Nail Jam

Maintenance

Depth of Drive

Nail Jam

Compatible Products

Fasteners

18 Gauge Straight Galvanized Brad Finish Nails

Accessories

Cordless Finish Fuel Cell

Cordless 7V Li-ion Battery

Cordless 7V Li-ion Battery Charger

Cordless Tool Cleaner 12oz

Cordless Tool Lubricating Oil 4oz

Cordless Finish Fuel Cell

Cordless 7V Li-ion Battery

Cordless 7V Li-ion Battery Charger

Cordless Tool Cleaner 12oz

Cordless Tool Lubricating Oil 4oz

FAQs

Does Paslode offer tool repair kits?

Paslode offers the following repair kits:

219305 / Cordless Framing Tune Up Kit for 900420 (IMCT)
219235 / For F350S / 501000 Repair Kit
219426 / For F350S / 50100 Premium Rebuild w/ main valve assembly
219224 / Trigger Valve Repair Kit for 3000, 4000, 5000 Series, F350S
219377 / Cordless Framing Tune Up Kit for CF325/CF325Li/XPmodels - For PF350S / 502000 and DF350S
219352 / 502000

The kits can be purchased at a sales location nearest you or online:

What if my Paslode Cordless Nailer isn't working?

Check these 6 things to get your nailer back to work.

Check fuel cell expiration date
Check for empty fuel cell by tapping valve upward against firm object (look for mist)
Battery charge – check for green light
Dirty filter
Nails loaded correctly (never use straight nails)
Nail jam – check for operating manual for safety procedures

We also offer free servicing for eligible cordless tools. Visit our 2-Year Service Promise page to learn more.

How do I order a part online?

Genuine Paslode replacement parts, tune up kits, accessories, and repair service can be purchased online at itwconstructionparts.com.

Does Paslode offer a cleaning kit for the Cordless Nailers?

The kits can be purchased at a sales location nearest you or online:

What is included with a new Paslode Cordless nailer?

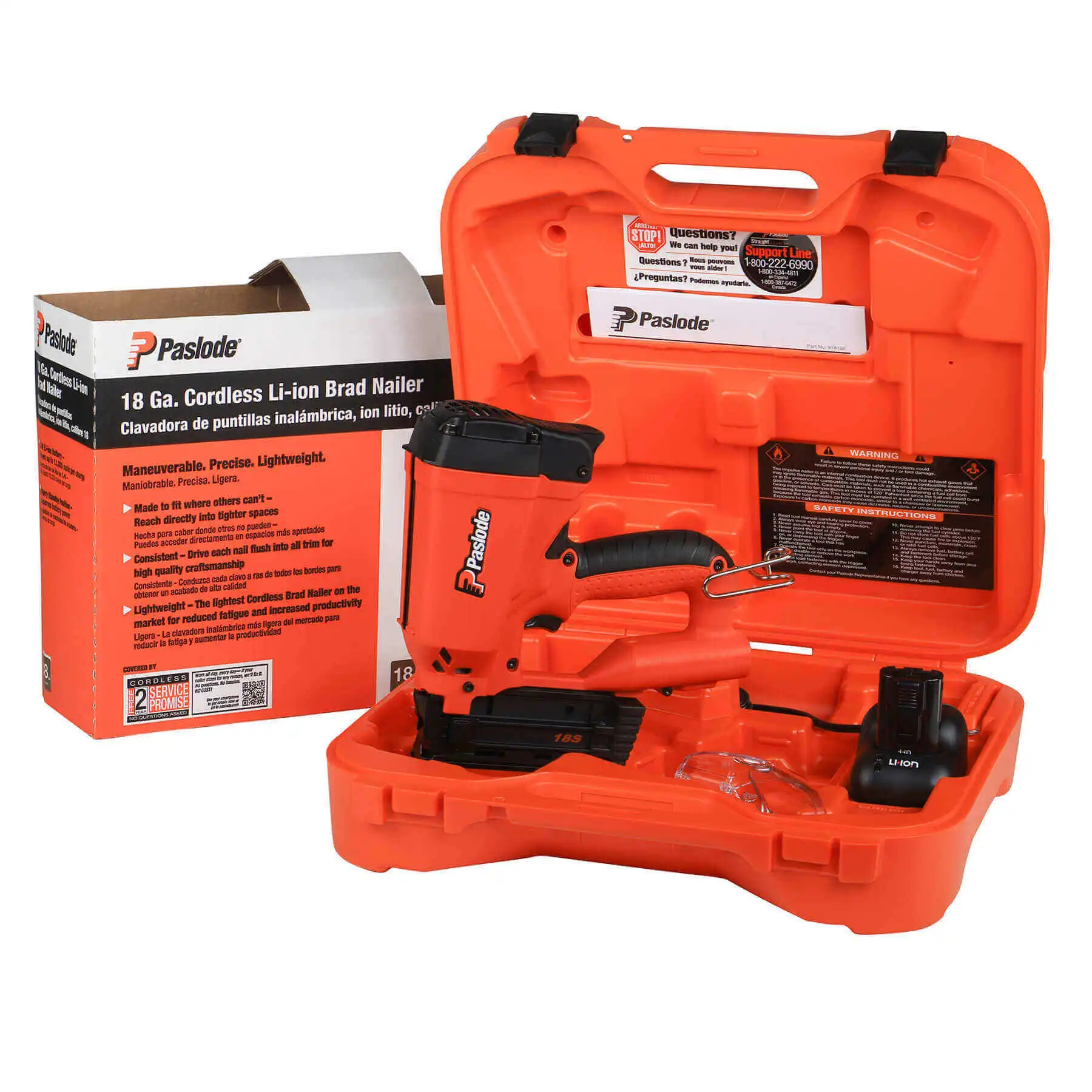

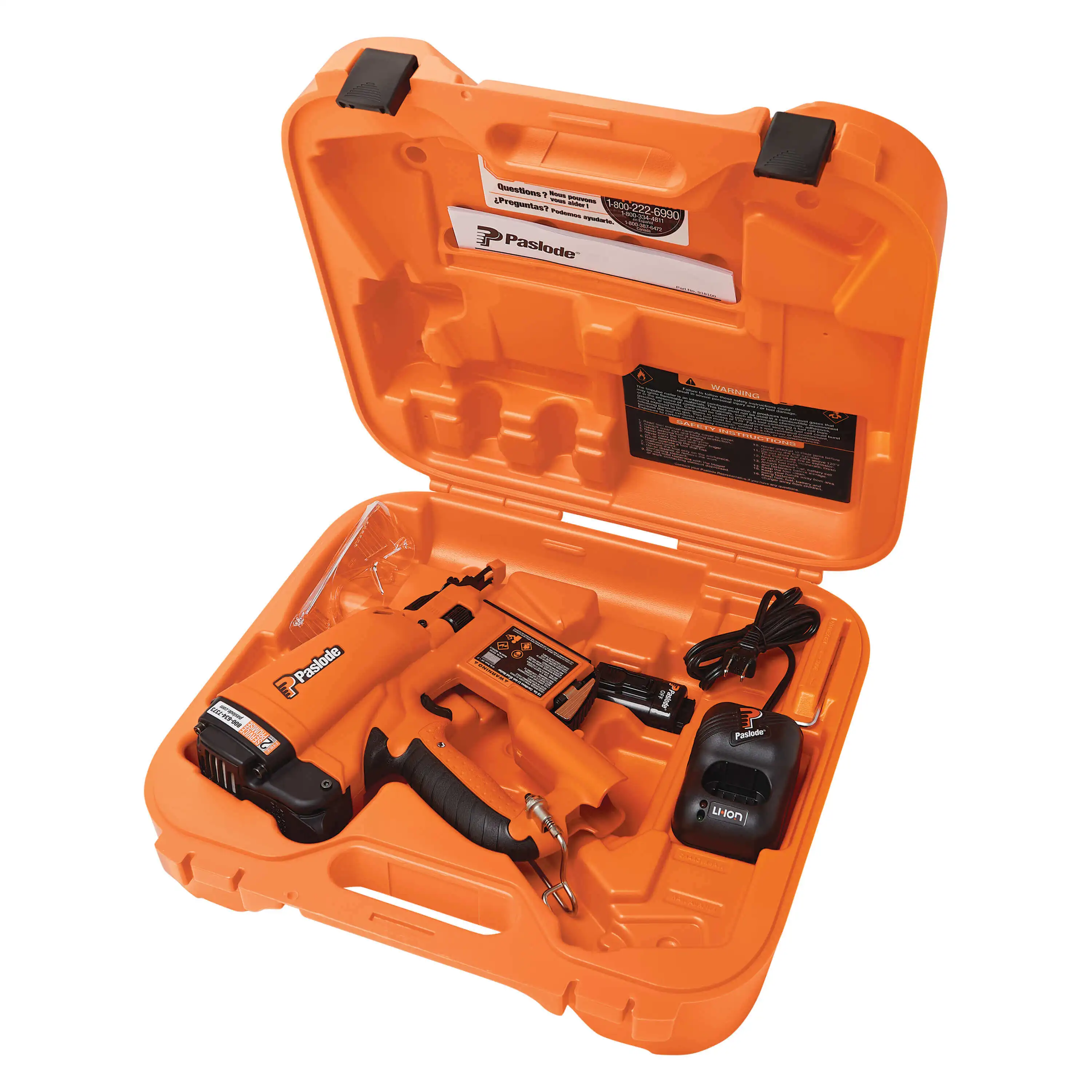

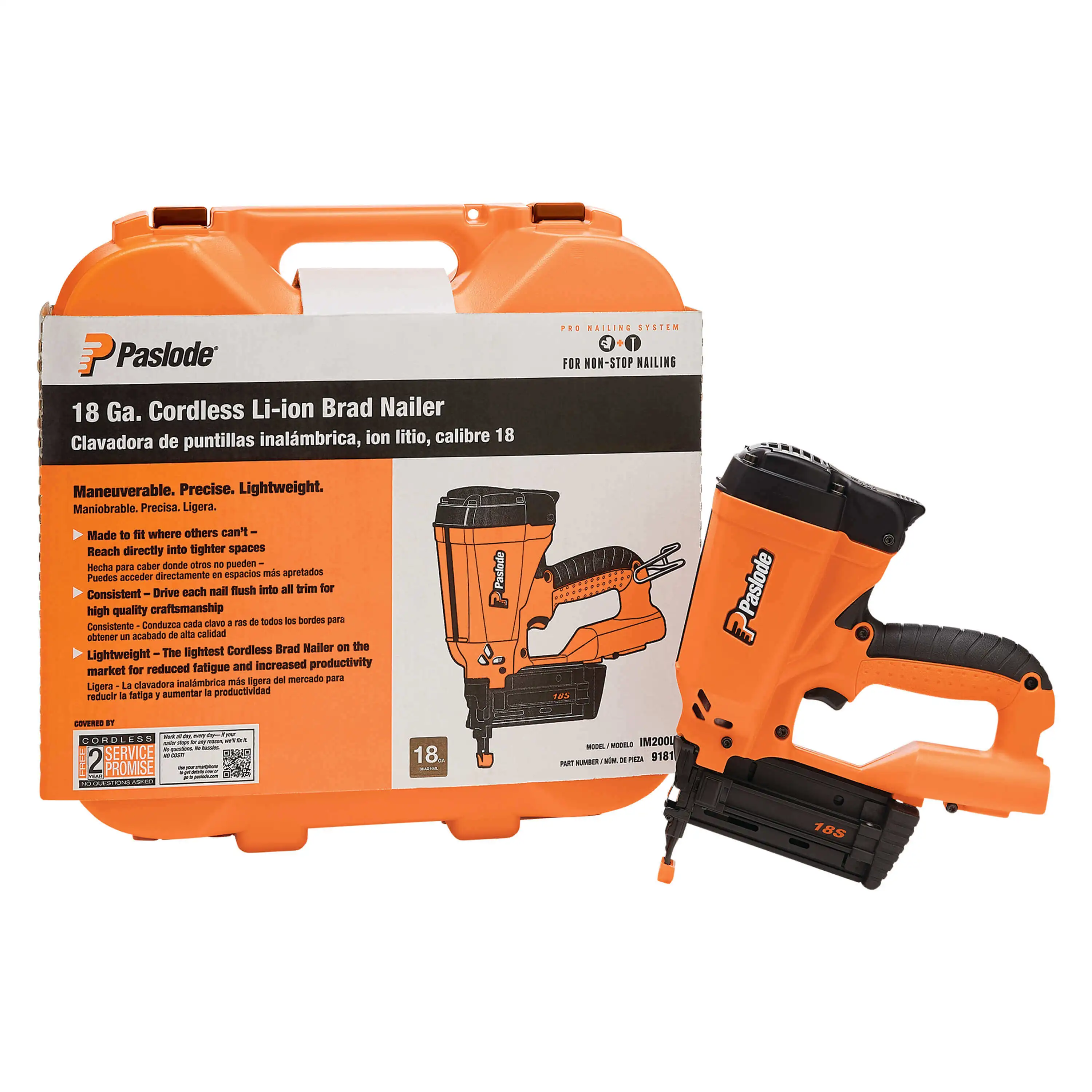

A new Cordless nailer includes the following:

Carrying Case
Clear Safety Glasses
Battery Charger
Rechargeable Battery
Hex Key
Owner’s Manual
Tool Reference Guide
Participating dealers may include an extra battery and fuel cells in the case

Where is the serial number located on a Paslode Cordless Nailer?

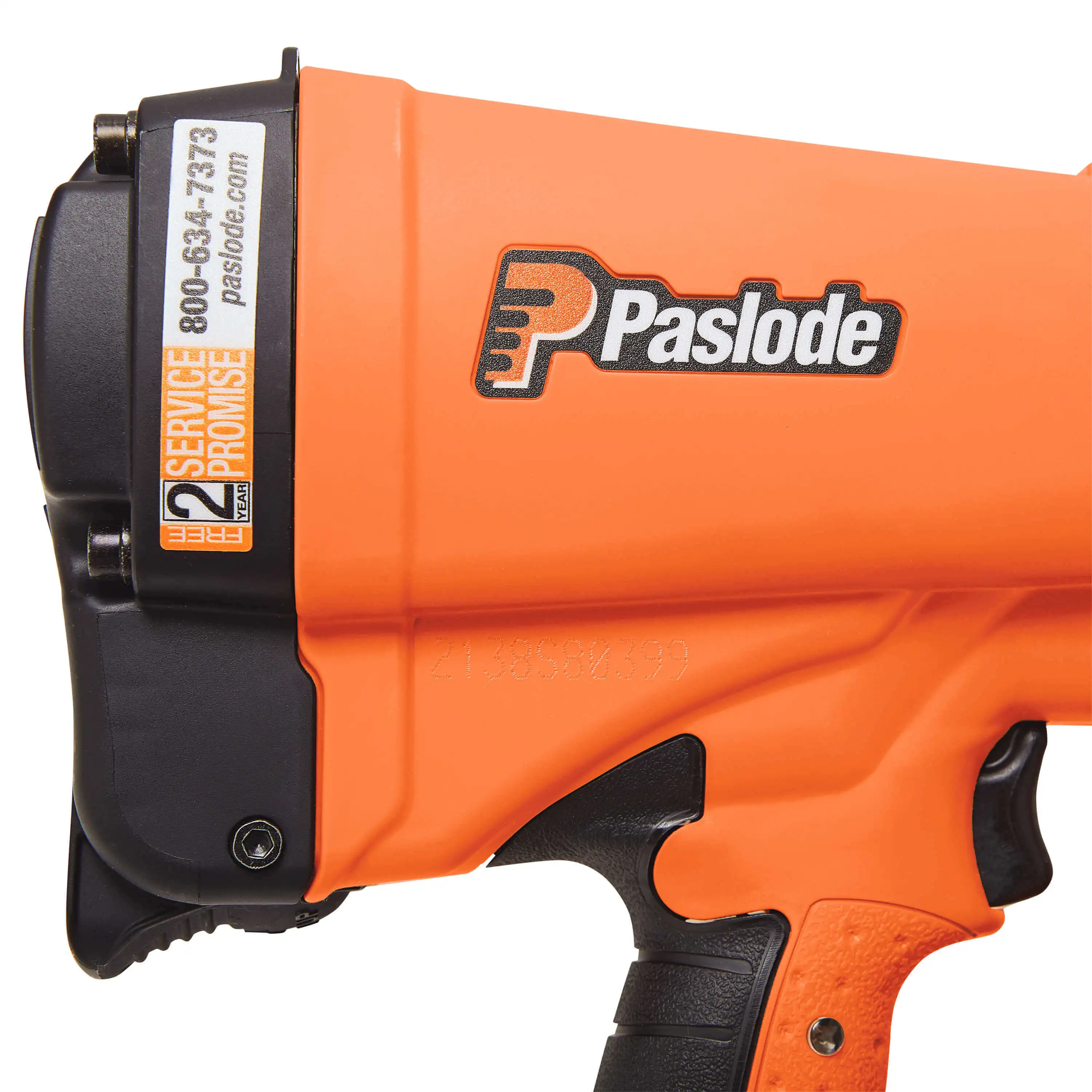

The serial number is engraved on the motor housing of the nailer. It is on the right side (battery compartment side). The easiest way to locate the number is to hold the tool with the battery side up and the nose pointing to your right. Look approximately 1 inch below the “P” on the Paslode label and toward the handle. On the CF325 it is located below the nose of the nailer. The serial number is 9 or more digits long.

Do I need to oil my Cordless Nailer?

Your Cordless nailer comes pre-lubricated from the factory. It is not uncommon to see a small amount of oil that seeped out into the case. Because the fuel contains a small amount of oil, it is not necessary to oil the tool during normal use. The only time the tool should be oiled is after it has been cleaned.

What should I use to clean my Cordless Nailer?

Paslode recommends using Paslode Degreaser Cleaner part number 219348.

Can I use something other than Paslode Degreaser Cleaner to clean my nailer?

Paslode Degreaser Cleaner is specially formulated for Paslode Cordless and pneumatic nailers. Other products may damage electrical components, plastic parts, and rubber parts. They may also leave a residue which could cause damage to the nailer or injury to the operator of the nailer.

What type of oil should I use after the nailer has been cleaned?

Use only Paslode Cordless Tool Lubricating Oil part number 401482. It is specially formulated to withstand the high temperatures generated by Cordless nailers. Using other oils can cause the rapid build-up of combustion residue leading to poor nailer performance and more frequent cleanings.

Which Fuel Cell does my Cordless Nailer use?

In general, fuel cells with ORANGE labeling are for Framing nailers and fuel cells with YELLOW labeling are for Trim/Finish nailers and Staplers.

Framing Nailer – CFN325 Framing Nailer (part #906300), CF325 Framing nailer (part # 902200) and CF325 Li ion ((902600) => Cordless Framing Fuel Cells (816008)
Older Framing nailer (part # 900420, 404400, 404600 or 900129) => Red Fuel Cells (part # 816000 or 816050)
16ga Angled Finish nailer (part # 902400) => Cordless Finish Fuel Cells (part #816007)
16ga Angled Finish nailer (part # 900600) => Short Yellow Fuel Cells (part # 650039), 16ga Straight Finish nailer (part # 902000) => Short Yellow Fuel Cells (part # 650039)
Older model 16ga Straight Finish Nailer (part # 900400 or 900105) => Tall Yellow Fuel Cells (part # 816001)
18ga Brad nailer (part # 901000) => Short Yellow Fuel Cells (part # 650039)
16ga Stapler (part # 900078) => Tall Yellow Fuel Cells (part # 816001

Do Fuel Cells have a shelf life?

Fuel cells have a “Best Used By” date printed on the bottom of the can. A fuel cell will often work beyond that date, but if a tool starts to work intermittently it could be because the fuel cell has expired. An expired fuel cell has lost enough internal pressure to degrade its performance.

We recommend buying only enough fuel to complete the job. Always check the date on the bottom of the can before purchasing or using a fuel cell to ensure it is not past the best used by date.

Will other brands of nails work in my Paslode Nailer?

Paslode nailers and fasteners are engineered to work together as a system. Other brands of nails may not be designed or manufactured to the same specifications or quality standards as Paslode. Using nails that do not meet Paslode’s specification may cause damage to the tool and injury to the operator or bystanders, and may void warranty.

Can I use other brands of fuel in my Cordless Nailer?

Paslode fuel is formulated for Paslode Cordless nailers. Using other brands of fuel may damage your tool or increase how often it needs serviced.

How long does it take to charge a battery?

A new battery will take up to 2 hours to fully charge. A partially discharged battery will take between 5 minutes and 2 hours to fully charge depending on the amount of discharge.

2 minute quick charge will drive up to 200 nails.

How many fasteners can be driven with a fully charged battery?

On average a fully charged battery will drive 4,000 fasteners before needing to be recharged.

Do I need to do anything special to operate the nailers in cold temperatures?

The nailers will perform better in temperatures above 32 degrees Fahrenheit. If you plan on using the nailers below 32F they should be warmed up before use (such as placing them in the cab of a truck while driving to work). Fuel cells can be warmed by placing them in an inside coat pocket. Never place the tool or fuel in the vicinity of a fire or an open heating element.

Are Cordless Nailers affected by altitude?

Cordless nailers will not work well above an elevation of 6,000 feet.

The nailer fires but no nail is being driven. What causes this?

There are several things that could cause a nailer to “blank fire”:

If your tool does not have a lockout, check that you haven’t run out of fasteners
There may be a nail jam preventing the fasteners from moving forward. For information on clearing a nail jam, visit the Tools Manuals page and reference your Tool's Operating Manual
Cordless nailers may require cleaning. If the tool has driven 10,000 nails or more, it may require cleaning.

When I fire the Cordless Nailer it makes a "poof" sound. What is causing that?

This can be caused by several things, but a nail jam is the most common. Remove the fuel and battery then clear the jammed nail(s) from the tool. If the driver blade is in the down position the tool will not fire. With the fuel and battery removed from the tool, push the driver blade all the way up into the tool and test the tool.

How do I remove a jammed nail from a Cordless Framing Nailer?

First remove the fuel, battery and the remaining nails in the magazine. Using the 5/32 hex key, remove the two screws on either side of the work contact. Next grab hold of the work contact with one hand and the bottom of the magazine with the other. Pull the two away from each other and the magazine will separate from the nose. This will allow the jammed nail to fall out. Inspect the driver blade and push it back up into the tool. Install the two nose screws.

For more information, visit the Tools Manuals page and reference your Tool's Operating Manual.

The light on the handle of my Cordless Nailer is flashing red and green. What does that mean?

The nailer’s electrical system has gone into overload protection. There may be something wrong with the fan motor or the wires going to the fan motor. Remove the battery, fuel and nails. Next remove the cap and grill to inspect the red and black fan motor wires. If the wires are pinched or broken, that may be the problem.

What does it mean when the lights on the charger flash red and green?

It is normal for the lights on the charger to flash red/green for up to 20 minutes. The charger is slowly building the charge in the battery until the battery is able to accept the full output of the charger. This protects the battery and increases the life of the battery. If the lights continue to flash red/green after 20 minutes but go to a steady green when the battery is removed, it is likely there is a problem with the battery.

How do I find a Paslode Authorized Service Center?

To locate your nearest service location, click the "Find Service Center" tab on the "Where to Buy" page, and enter your zip code. Paslode recommends that tools needing service be repaired through your local Factory Authorized Service Network.
